Monteringar och tillbehör > Monteringar > Parallaktisk utan GoTo > Omegon > Pro > Omegon Montering Montierung EQ-500 X Drive
Artikelnr: 56115

Montering Montierung EQ-500 X Drive

$ 919,00 inkl. moms, plus fraktkostnader
inkl. bästa pris-garanti
på lång sikt
Artikeln är inte tillgänglig längre + Frakttid

Beskrivning av artikel

Mer om serien Pro...

Denna artikel är inte avsedd för normal försäljning.

Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

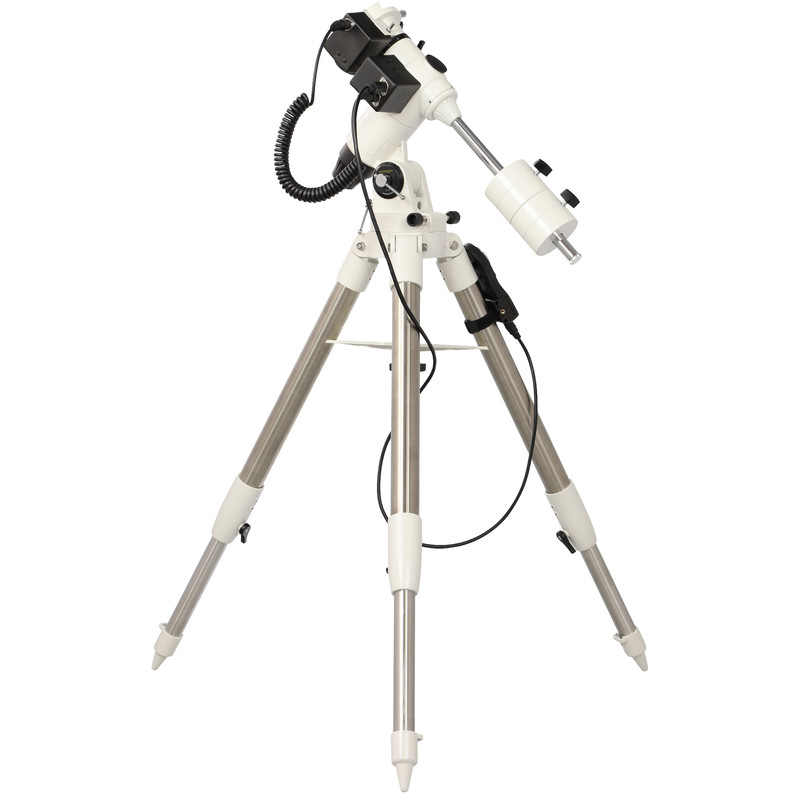

The Omegon EQ-500 X Drive is the ideal all-round telescope mount for demanding beginners and advanced amateur astronomers. The affordable mount carries small and medium-sized telescopes for both visual and photographic applications. A simple assembly and uncomplicated controls allow a quick start into the observation night.

Motorized tracking: The Omegon EQ-500 X Drive is a tracking mount and automatically compensates for the Earth's rotation. Making observations very comfortable, as it is not necessary to continuously slew the telescope by hand. For visual use, a quick and rough alignment to the pole is sufficient.

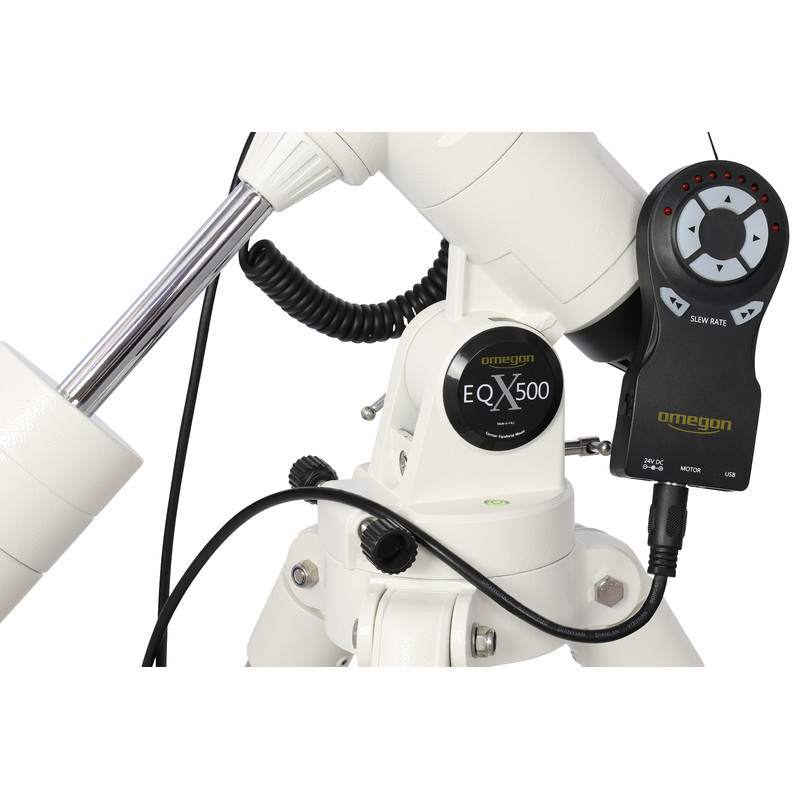

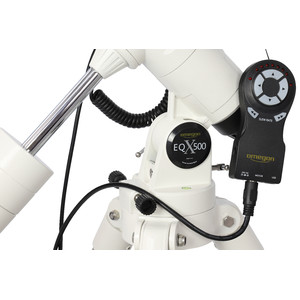

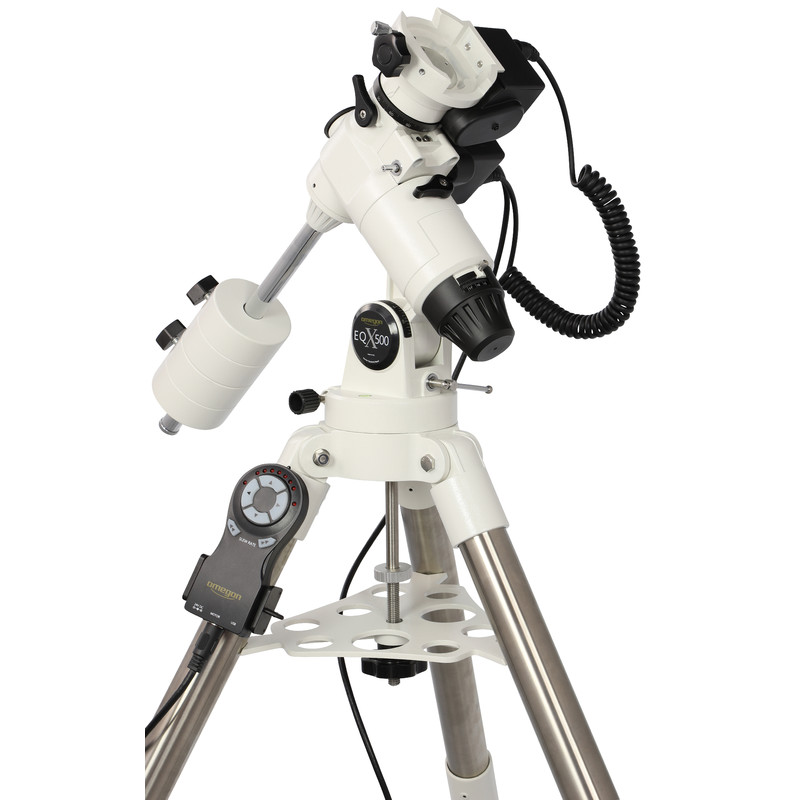

Motors on both axes: You can move the telescope using the four handy direction keys on the handbox without having to turn your gaze away from the eyepiece. Different motor speeds enable you to switch between rapid or high-precision movements across the night sky.

Astrophotography: Tracking is a prerequisite for astrophotography. Long exposures of nebulae or galaxies can only be achieved if the Earth's rotation is compensated completely. The stepper motors with precise microsteps enable this due to their smooth run. In addition, an (not included) pole finder can be used to make tracking even more effective through a precise polar alignment.

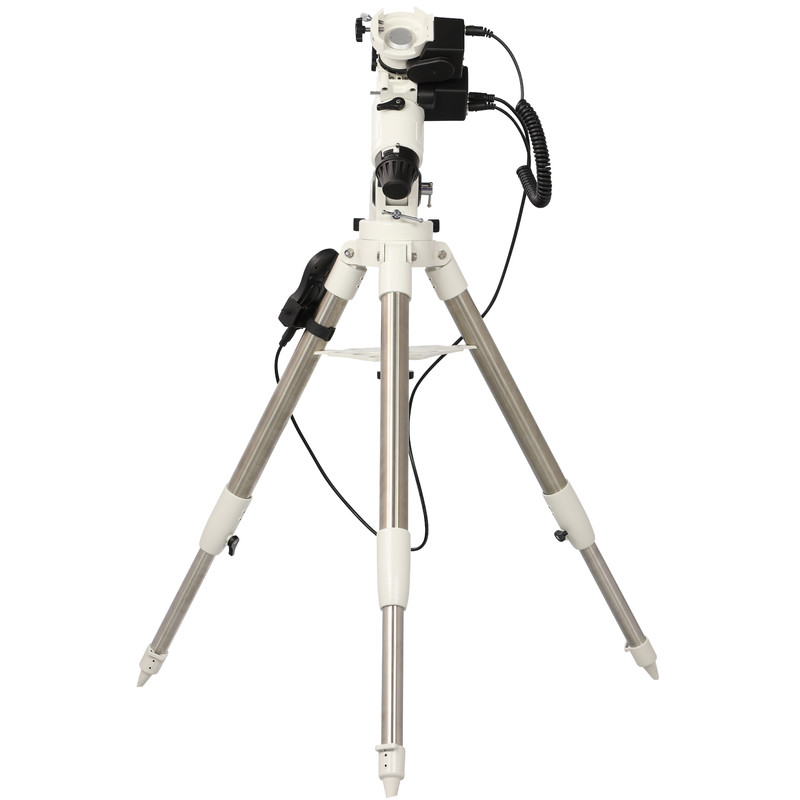

Sturdy tripod: The height-adjustable stainless steel tripod is much more stable than common aluminum tripods. The robust spreader plate also serves as secure shelf for seven 1.25" eyepieces and two 2" eyepieces.

Included: 2 counterweights (2.5 kg)

Coming soon: (The following features are still in the test phase and are expected to be available in summer 2019. An update of already purchased mounts is not necessary). GoTo via PC, smartphone or tablet! The mount can be connected directly to a (separately available) StellarMate or ZWO ASAIR via a supplied USB cable. This turns the Omegon EQ-500 X Drive into a WiFi GoTo telescope! Use for example SkySafari on your smartphone to select an object in the night sky and slew automatically towards it with the telescope. Without additonal devices, a direct connection of the mount to a PC is also possible via USB. ASCOM drivers allow the control of the telescope. Autoguiding through ASCOM or INDI - an ST4 interface is not required.

Tekniska data

Prestanda


Beteckning
EQ-500 X Drive
Max belastning (kg)
10
Kabelföring
intern
Gränssnitt
USB
Monteringssadel
Vixen-Style
Monteringens vikt (kg)
4,2
Motvikt(er)
2 (@ 2,5 kg)
Diameter motviktsstång (mm)
20
Strömförsörjning
24
Polhöjdinställning (°)
5 - 60°

Särskilda egenskaper


Guidning RA-axel
ja
Autoguider-gränssnitt
-
Polhöjdskala
ja
Libell
ja
GoTo-system
nej

Utrustning


Stativ
Trebensstativ
Tillbehörsbricka
ja
Polsökare
nej

Stativ


Max stativhöjd (cm)
102
Min stativhöjd (cm)
61
Stativvikt (kg)
7
Stativets material
Stahl
Stativbenens diameter (mm)
45

Allmänt


Färg
vit
Totalvikt (kg)
17
Serie
Pro
Typ
Montering
Typ av byggnad
parallaktisk

Användningsområden


Fotografiskt användbar
ja
Visuellt användbar
ja

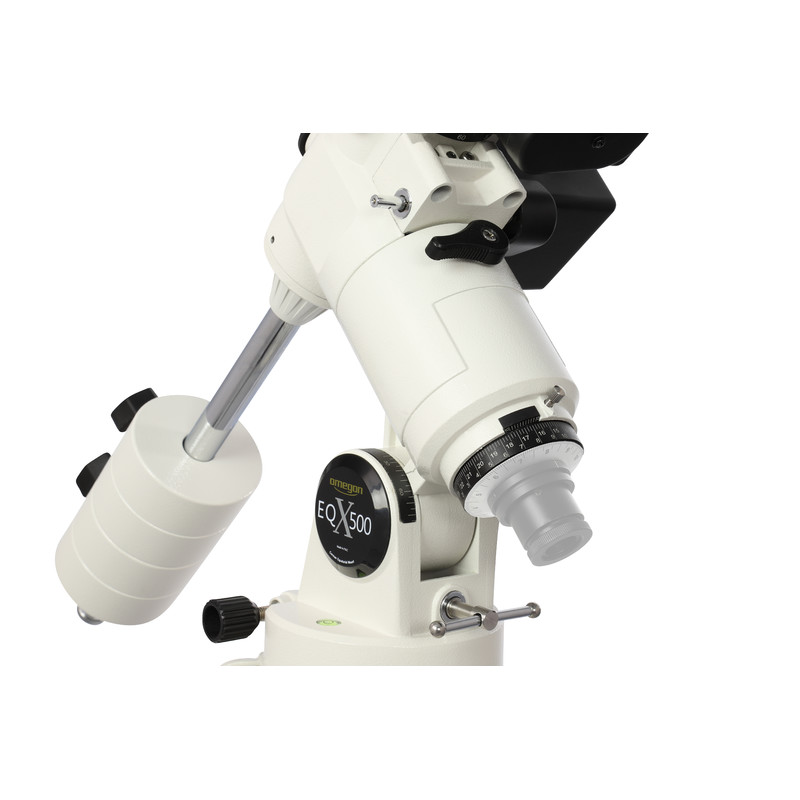

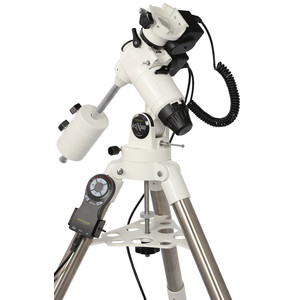

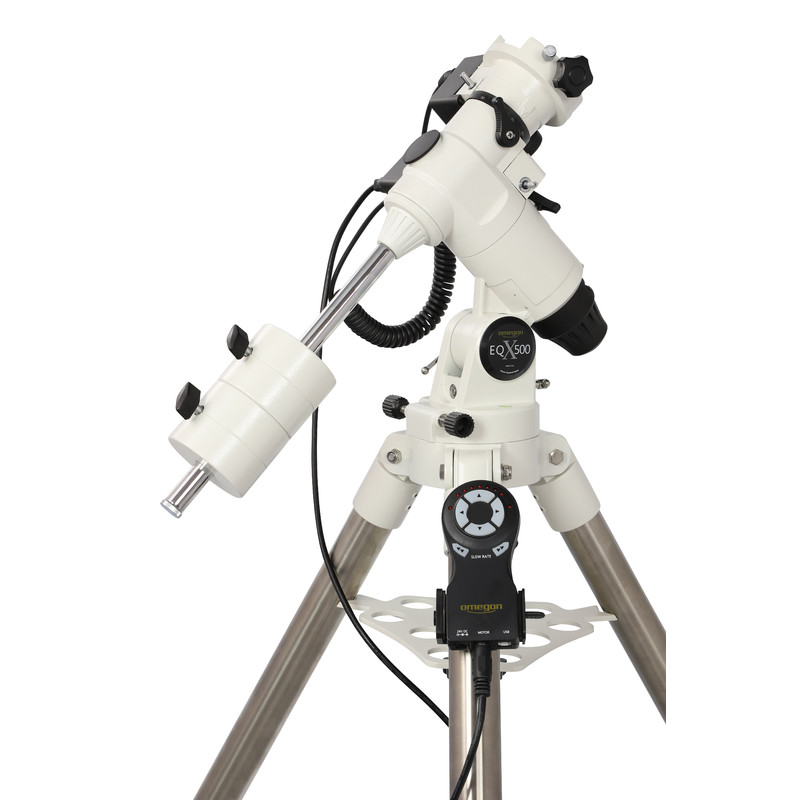

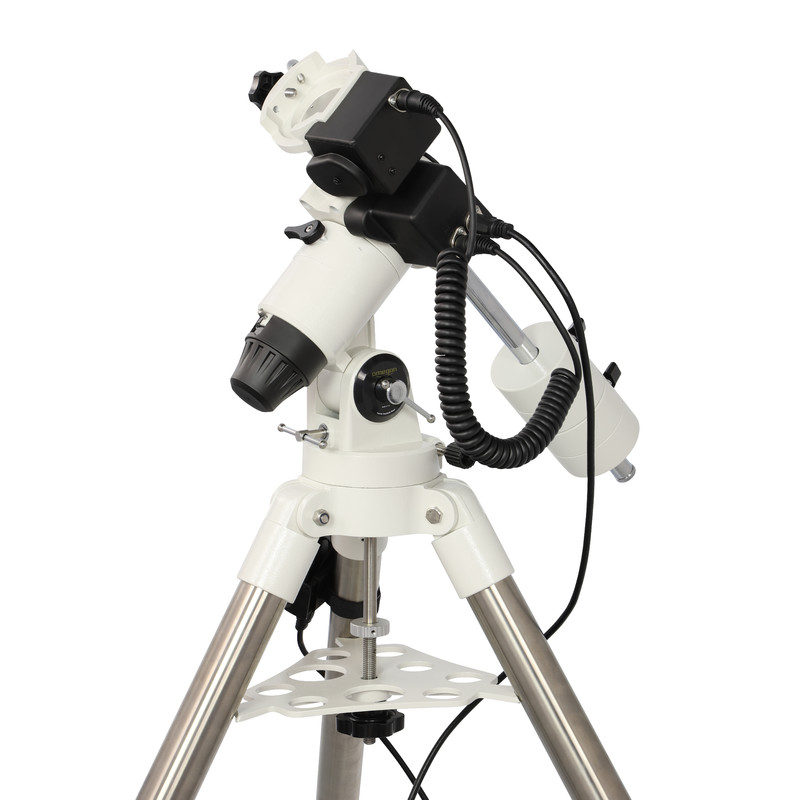

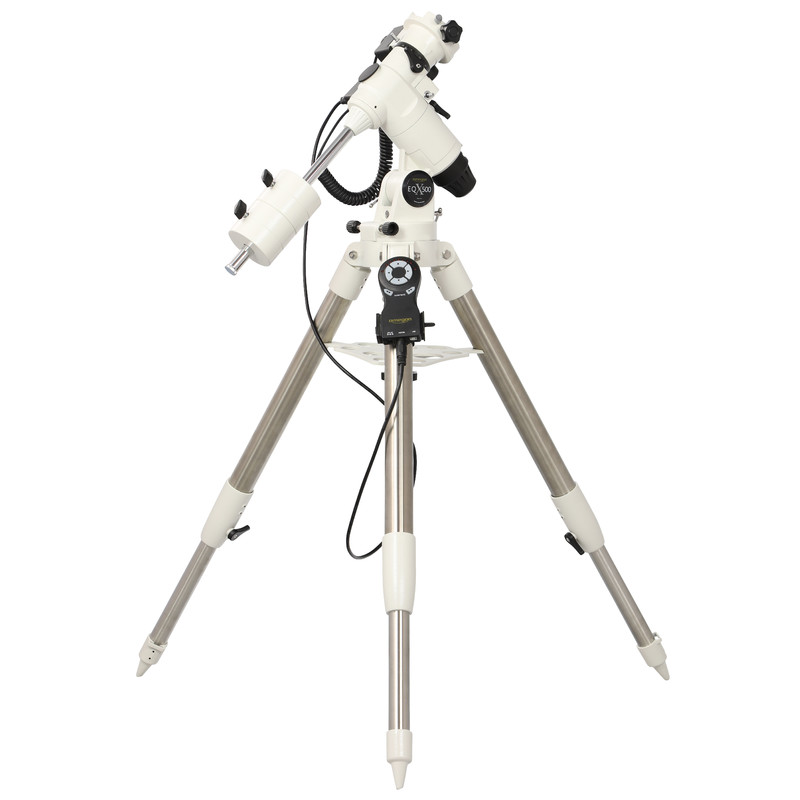

Omegon Montering Montierung EQ-500 X Drive
Omegon Montering Montierung EQ-500 X Drive
Omegon Montering Montierung EQ-500 X Drive
Omegon Montering Montierung EQ-500 X Drive
Omegon Montering Montierung EQ-500 X Drive
Omegon Montering Montierung EQ-500 X Drive
Omegon Montering Montierung EQ-500 X Drive
Omegon Montering Montierung EQ-500 X Drive
