Teleskop > Orion > SkyQuest > Orion Dobson-teleskop N 356/1650 SkyQuest XX14i TrussTube Intelliscope DOB Set
Artikelnr: 46510

Dobson-teleskop N 356/1650 SkyQuest XX14i TrussTube Intelliscope DOB Set

på lång sikt
Artikeln är inte tillgänglig längre + Frakttid

Beskrivning av artikel

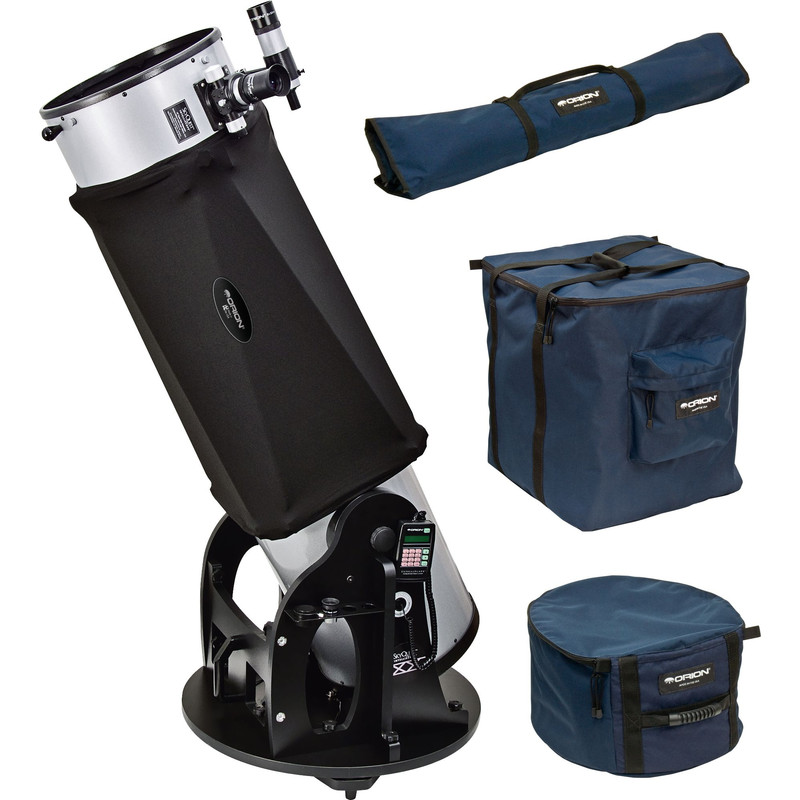

This set supplies you with suitable transport bags and a light shroud in addition to the usual equipment.

Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

The Orion SkyQuest telescope:

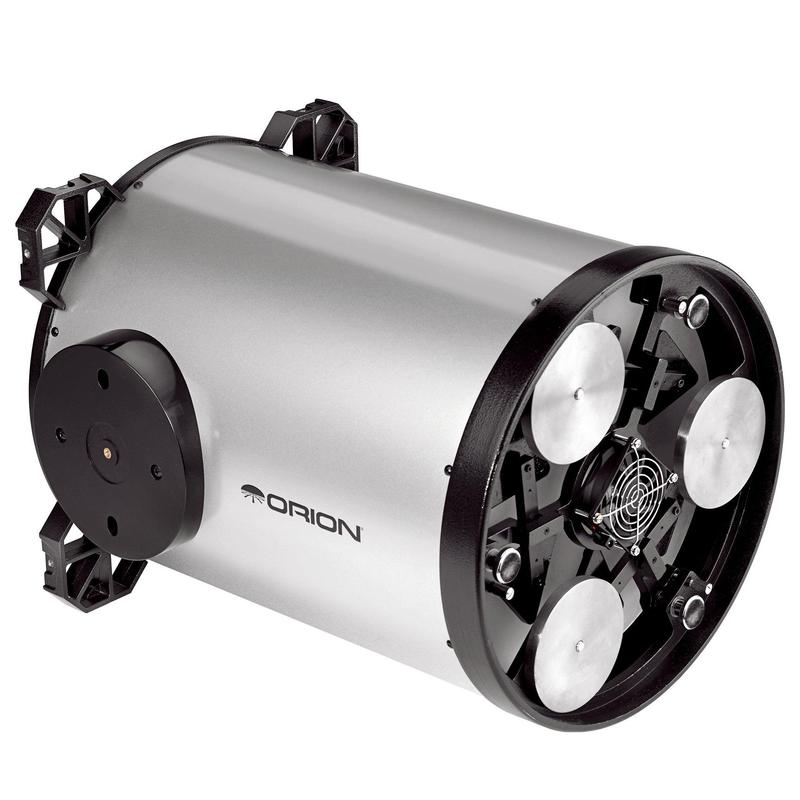

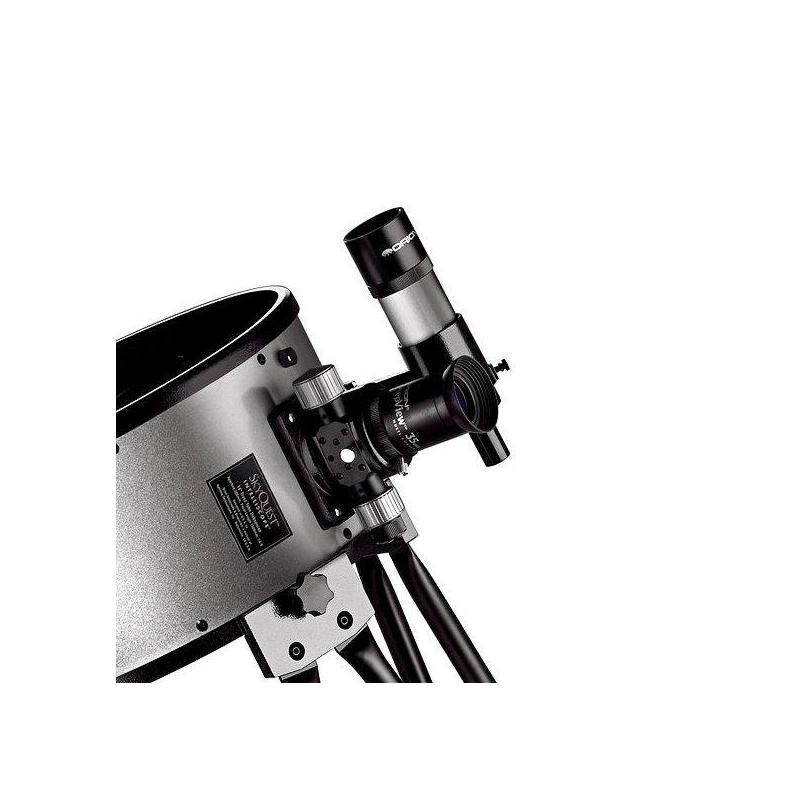

The optics of this Newtonian reflector telescope are of Orion's customary high quality. The soda lime glass mirror is supplied with high-quality aluminium and silicon dioxide coatings. Focusing on models up to 150mm aperture is via a 1.25" rack-and-pinion drive, and from 203mm aperture a 2" Crayford focuser is used.

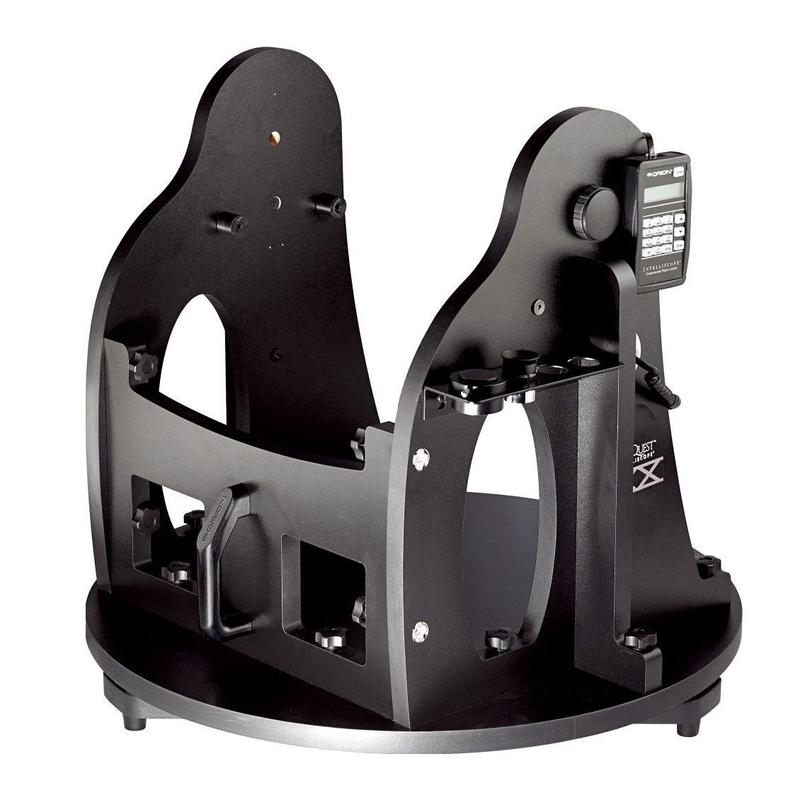

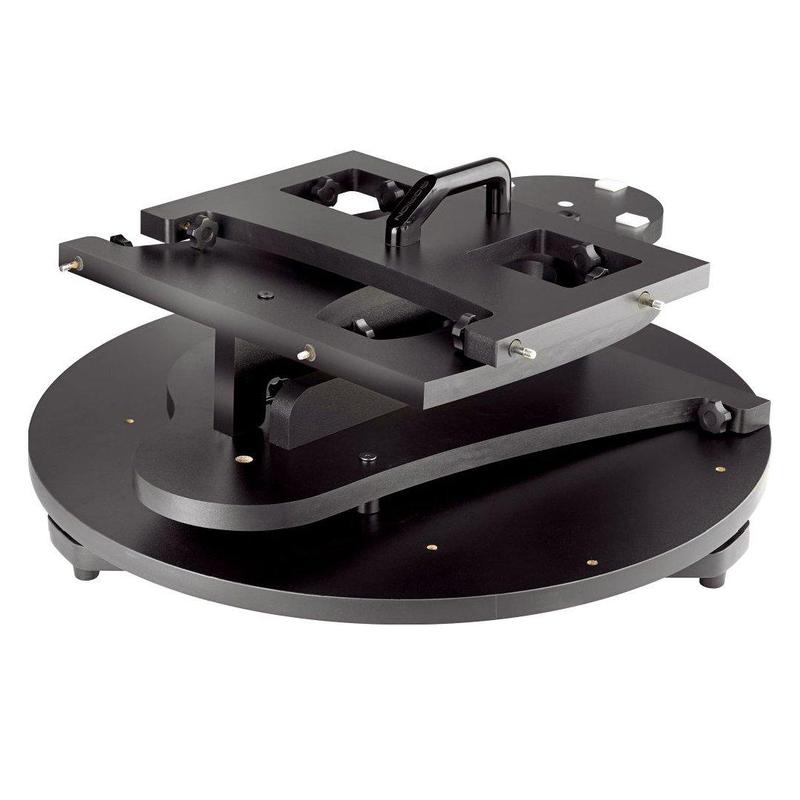

The Dobsonian base turns on smoothly running Teflon bearings, so allowing jerk-free, effortless movement of the telescope. The tube holds position as it is suspended in perfect balance. The components of the telescope are both easy to handle and light; the telescope is eminently portable and can be assembled in just a few steps and without specialist knowledge or tools. The entire construction distinguishes itself by its insensitivity to wind and its stability.

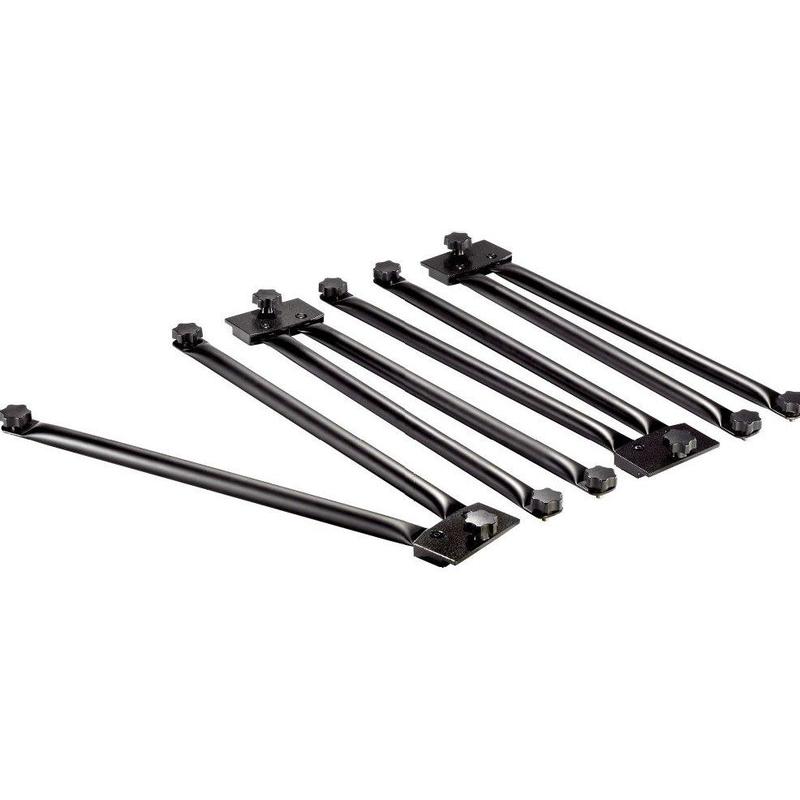

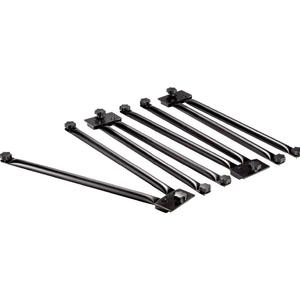

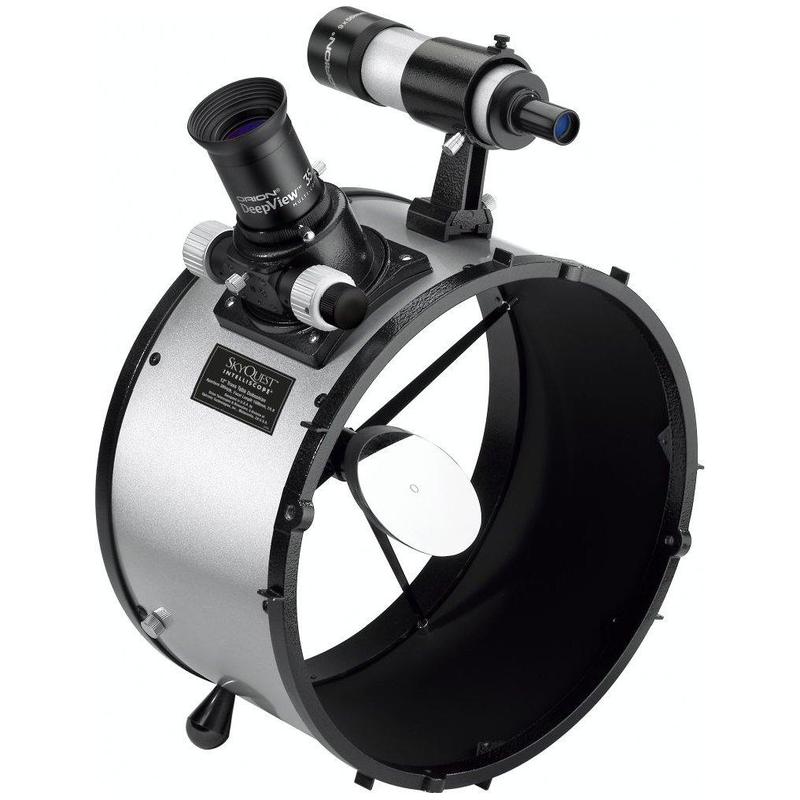

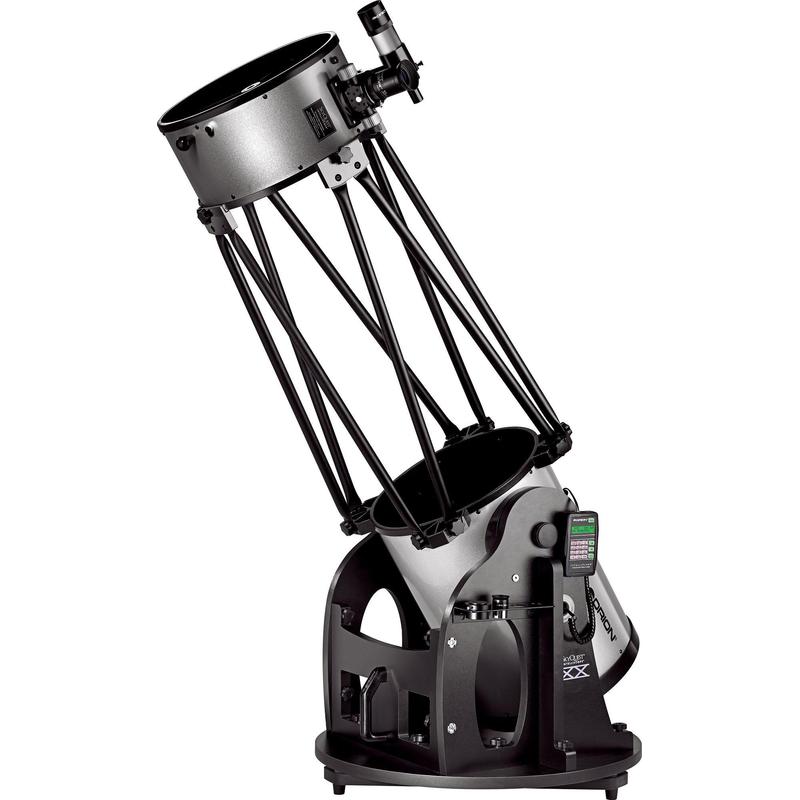

The truss tube design allows easy transport of this large telescope in a normal car: the entire instrument can be dismantled into a compact size in just a few easy steps and without the need of special tools.

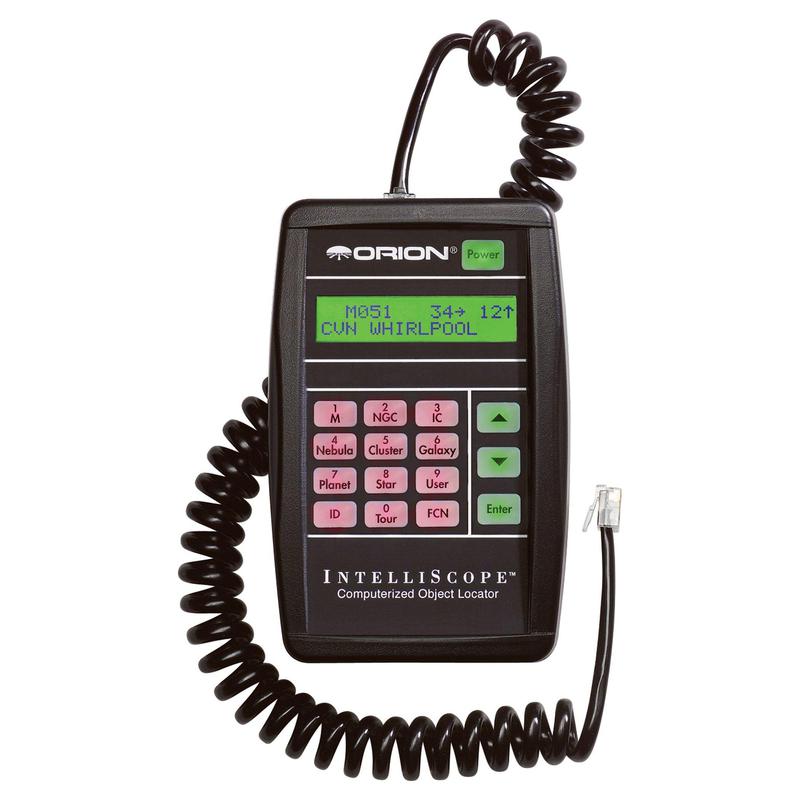

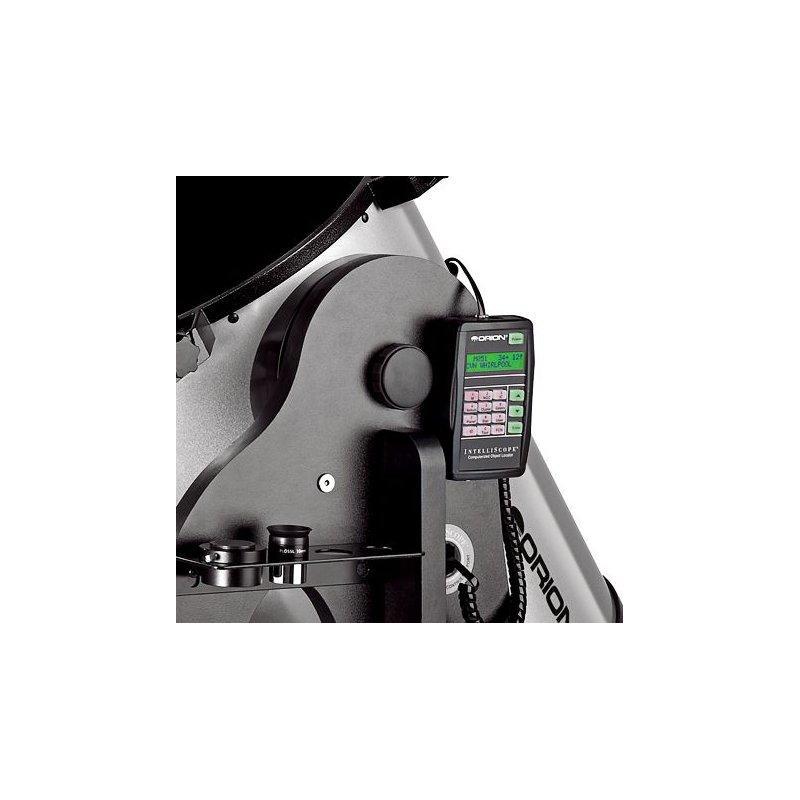

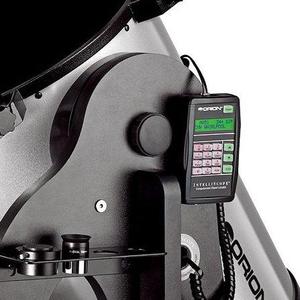

The Orion Object Locator allows you to quickly find more than 14,000 pre-programmed objects in the night sky. Firstly, the telescope is set up for the site you are at by using a simple alignment routine. The destination target is then selected from the library of objects by using the illuminated hand controller and the telescope is manually moved by following the directions given by the Object Locator - which appear as arrows displayed on the screen. Within a very short time you will have pointed your telescope at the object selected and you will be able to see it in the field of view of the eyepiece.

You can choose the targets by type (e.g. planets, nebulae, clusters, galaxies) or by catalogue number (e.g. M57, NGC253). Another way is to choose one of the 12 pre-programmed tours, which will show you the most interesting objects to be seen during the current month. The reverse is also possible: if you stumble on an interesting object during one of your excursions in the night sky that you cannot identify, the Object Locator can tell you what it is: If you press the ID button, you will immediately receive current information about what you are seeing, including the type of object, its name, its size and the constellation it is in. The Object Locator turns your telescope into a flexible instrument that will provide even beginners with long-lasting pleasure.

Included in delivery of the Orion N 356/1650 IntelliScope truss tube Dobsonian:

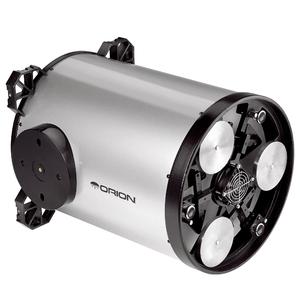

  • truss tube OTA with 356mm aperture and 1650mm focal length

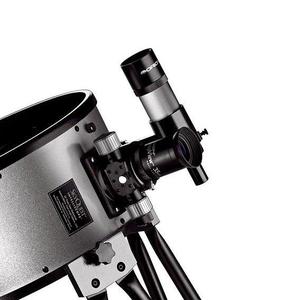

  • Crayford Focuser (2")
  • eyepiece adapter 2"- 1.25"
  • DV 35 mm (2") and SPL 10mm (1.25") eyepieces
  • 9x50 finder scope

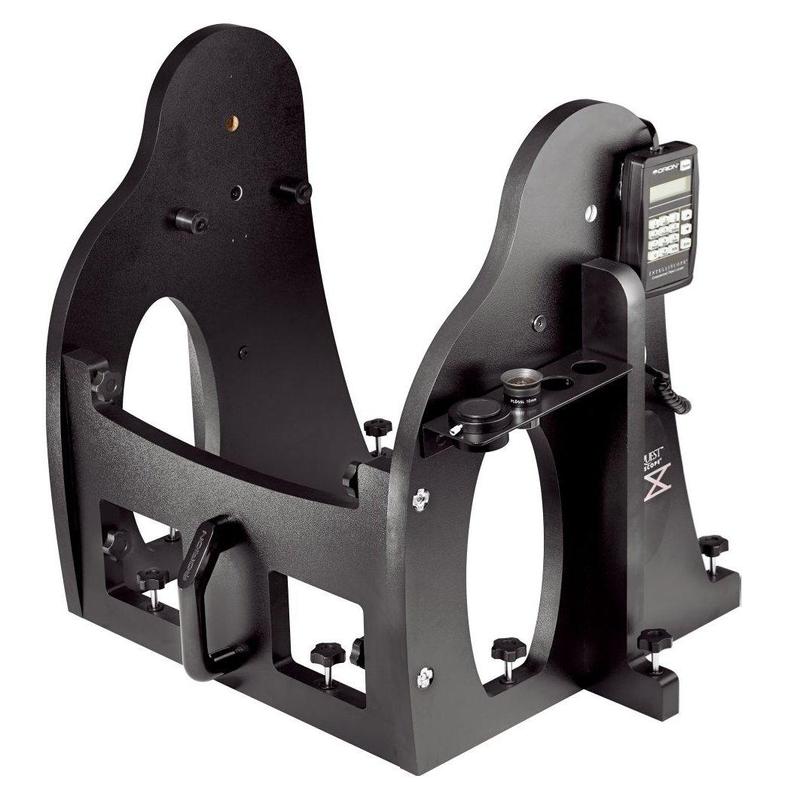

  • Dobsonian mount with teflon bearings and built-in eyepiece rack
  • IntelliScope Object Locator with over 14,000 pre-programmed objects

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Tekniska data

Optik


Typ
Reflektor
Typ av byggnad
Newton
Öppning (mm)
356
Brännvidd (mm)
1650
Öppningsförhållande (f/)
4,6
Upplösningsförmåga
0,32
Gränsmagnitud (mag)
14,6
Ljusinsamlingsförmåga
2590
Max användbar förstoring
712
Tubkonstruktion
Hopfällbar tub
Tubmaterial
Stål
Tublängd (mm)
155
Beläggning
Aluminium och kiseldioxid

Reflektor


Primärspegel material
Borosilikatglas
Sekundärspegel obstruktion
23
Primärspegel diameter (mm)
82

Fokuserare


Typ av byggnad
Crayford
Adapter (på okularsidan)
2
Nedväxling
1:10 fininställning

Montering


Typ av byggnad
Dobson
Monteringstyp
Dobson
GoTo-styrning
PushTo
Encoder
ja

Stativ


Material
Trä
Typ
Rockerbox
Vikt (kg)
20,2

Medföljande tillbehör


Okular 1,25''
SPL 10mm
Okular 2''
DV 35mm
Sökare
9x50
Ströljusskydd
ja
Transportväska
ja

Allmänt


Serie
SkyQuest
Särskilda rekommendationer
Ja
Totalvikt (kg)
54,5

Användningsområden


Måne och planeter
ja
Nebulosor och galaxer
ja
Naturobservation
nej
Astrofotografering
rekommenderas ej
Sol
nej

Rekommenderas för...


Nybörjare
ja
Avancerade
ja
Observatorier
nej
