Overview of the RH Veloce Telescopes:

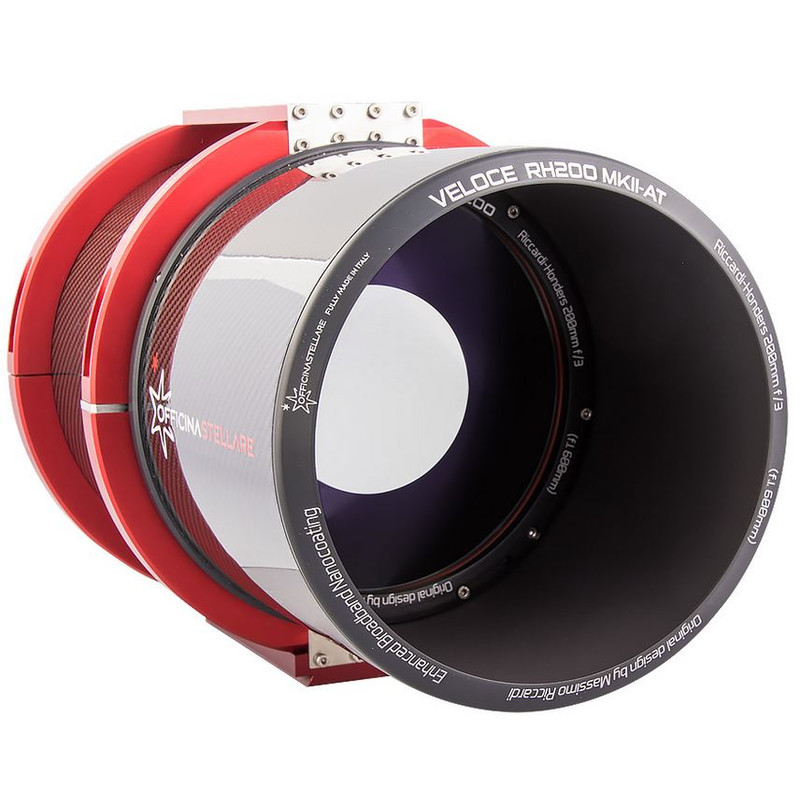

The RH Veloce is a really unique design, and uses several unique solutions, created by Riccardi and Honders. The RH Veloce uses a double front lens that is weakly convergent, and the primary mirror is a Mangin mirror (from the name of its French inventor). A Mangin mirror is a mirror that is coated on the back surface, not on the front. The light passes through the glass, is reflected by the coating and then passes again through the glass. For this reason, a Mangin mirror is called a refractive-reflective optical element, and opens exciting possibilities to optical engineers. This complex design includes also a corrector group before the focal plane, achieving performances impossible otherwise, with extraordinary fast photographic performances over wide focal planes.
A curiosity about the RH Veloce: since the double frontal lens is convergent, the Mangin mirror is smaller than the nominal diameter of the scope, while the meniscus itself is bigger than the nominal diameter, to ensure a good illumination over the wide field of view of such scopes. For example, the 200 mm model has a 220 mm meniscus and a 190 mm primary mirror. The secondary mirror is a separated piece of glass, or it is made coating the middle of the meniscus, depending on model.
The RH Veloce frontal lens is made in Germany under Officina Stellare specifications.
Veloce in Italian means fast, to indicate its primary vocation: to be a great astrograph capable of stunning performance.
A big evolution step of the iconic Veloce RH200 AT: You can now expect an even better large field photographic performance thanks to an innovative light baffles coating. It will give you a much better reduction of ghosts and scattered light.

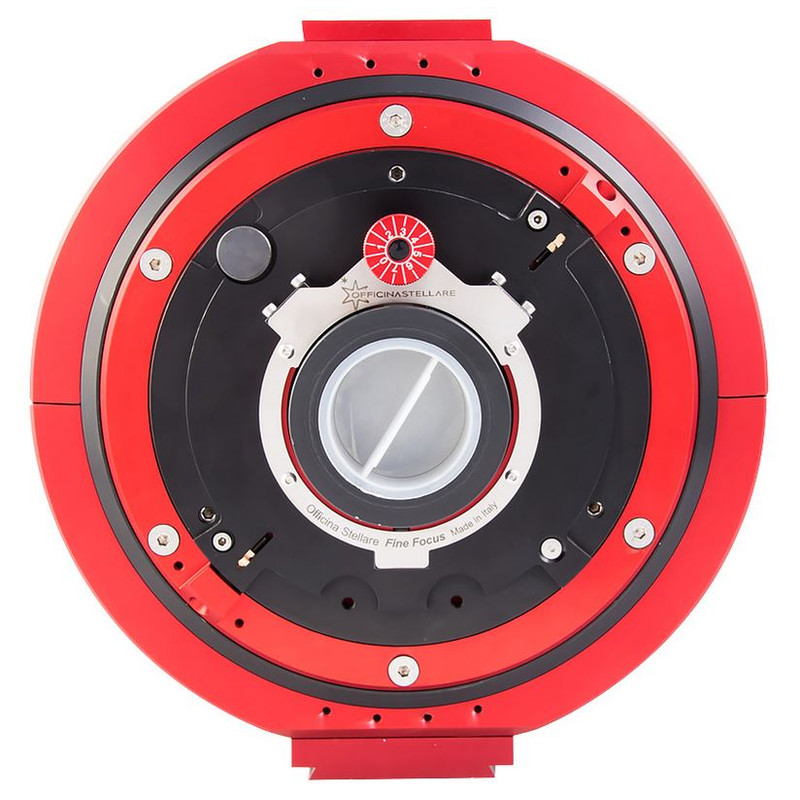

In addition, the new MARK II version uses an improved tip-tilt adjustment much more precise and easy to set also with heavy and complex image train. This new tip-tilt plate can be also equipped with motors to allow a remote control of the feature with our software. This version is definitely recommended for large size sensors and heavy cameras.
