Euromex BioBlue
These modern microscopes were specifically developed for education with a special attention for ergonomics and quality. The eyepieces are secured and equipped with an adjustable specimen protection.
- Wide Field eyepieces HWF 10x/18
- The eyepieces of monocular models are equipped with a pointer
- Mono- and binocular models, head 360° rotatable
- Revolving nosepiece for 4 objectives
- Semi-plan DIN 4x 10x 20x S40x S60x and S100x-oil objectives
- 120 x 120 mm stage with two object clamps or with integrated X-Y translation stage
- Adjustable specimen protection mechanism
- Coaxial coarse and fine adjustment with 0.002 mm graduations
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
- Adjustable LED illumination with built-in power supply, rechargeable batteries and charger
Euromex BioBlue Series
The beautiful stylish design of the BioBlue® series sets it apart from all other microscopes of its kind. It has been specially designed for schools and small laboratories. The general shape of the BioBlue® meets today's standards.
Especially for teaching, the eyepieces are secured and the microscope is equipped with an integrated table lock to prevent damage to the objectives or slides. All BioBlue models are equipped with adjustable LED illumination.
- Standard 10x/18 wide field eyepieces
- Eyepieces on monocular models with fixed pointer and fixed with a screw
- Monocular or binocular head, 360° rotatable
- Ball bearing turret for 4 objectives
- Semi-plan DIN objectives 4x 10x 20x S40x S60x and S100x-oil
- Square stage 120 x 120 mm with two object clamps with or without integrated XY cross-stage
- Round 135 mm stage with two object clamps and Vernier for the polarisation models
- With fixed blocking to prevent damage to objectives and specimen
- Coaxial coarse and fine drive with 0.002 mm graduation
- Abbe condenser N.A. 1.25, height adjustable, with iris diaphragm and filter holder
- LED illumination, adjustable. With rechargeable batteries for cordless operation
- Halogen 20 W illumination, adjustable for the polarisation microscopes
POLARISATION MODELS
• Wide field WF10x/18mm eyepieces, one of them equipped with cross micrometer
• With analyser and slider mounted under the head
• 360° rotatable polariser on the lamp housing
• Standard H-LED illumination for correct colour rendering (very similar to halogen light spectrum). With an integrated 100-240 Vac power supply
• Height adjustable N.A. 1.25 Abbe condenser with iris diaphragm and filter holder

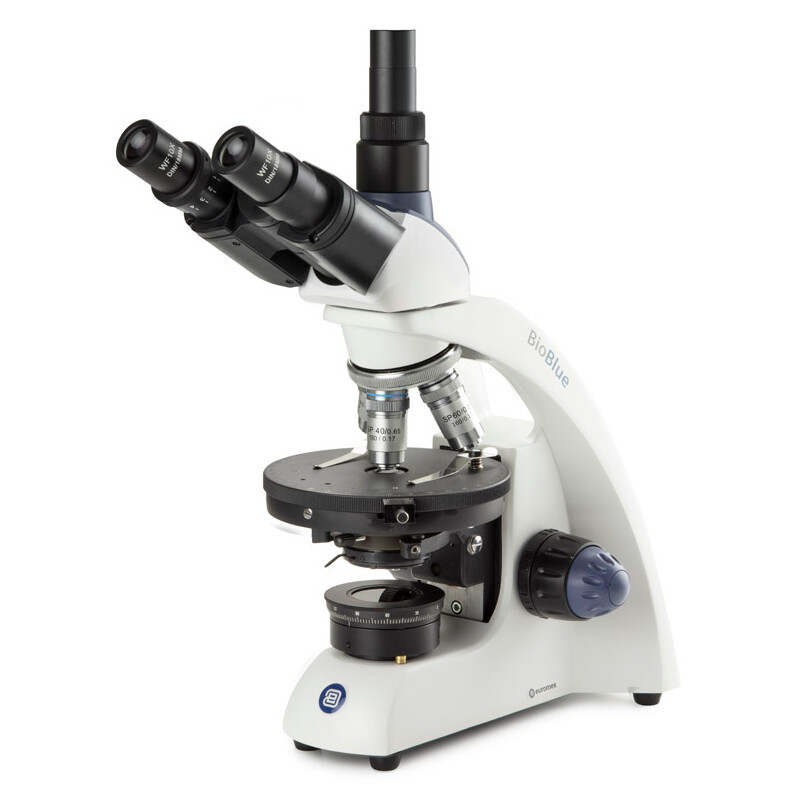

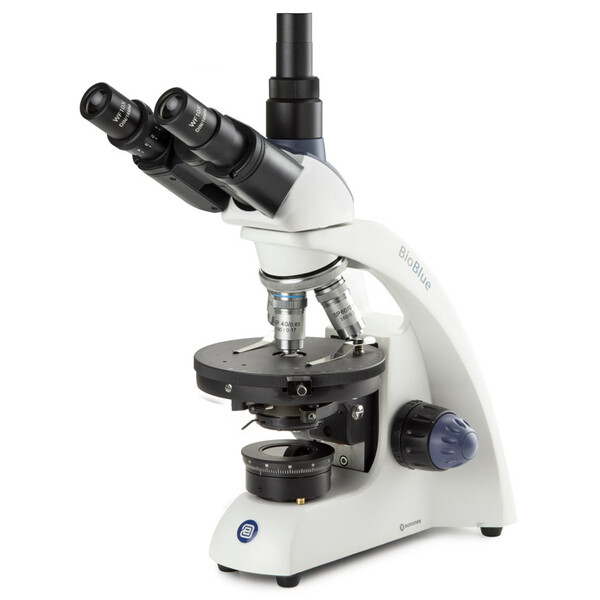

Specification BB.4243-P-HLED
Trinocular polarisation model with achromatic semi-plan DIN objectives
Included objectives: 4x/0.10, 10x/0.25, S40x/0.65 and S60x/0.85
