Teleskop > TS Optics > EDPH > TS Optics Apokromatisk refraktor AP 76/418
Artikelnr: 73830

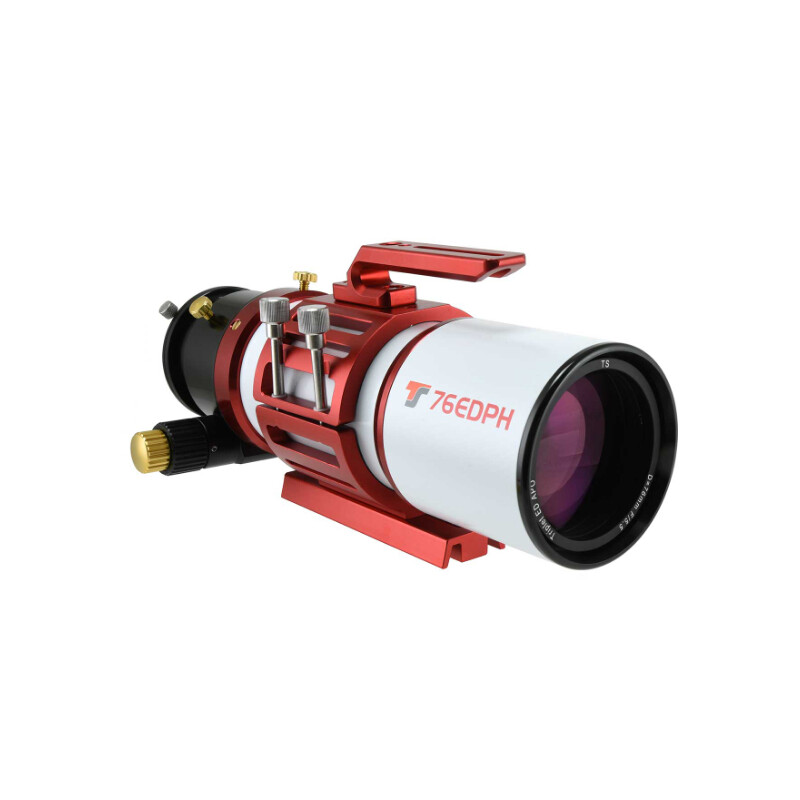

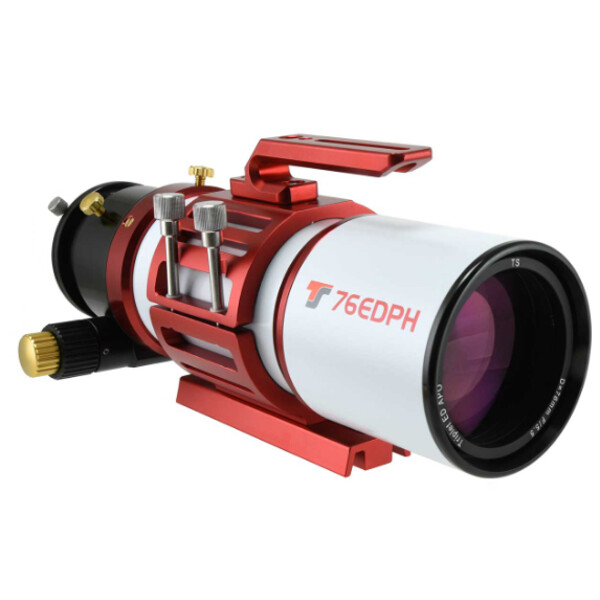

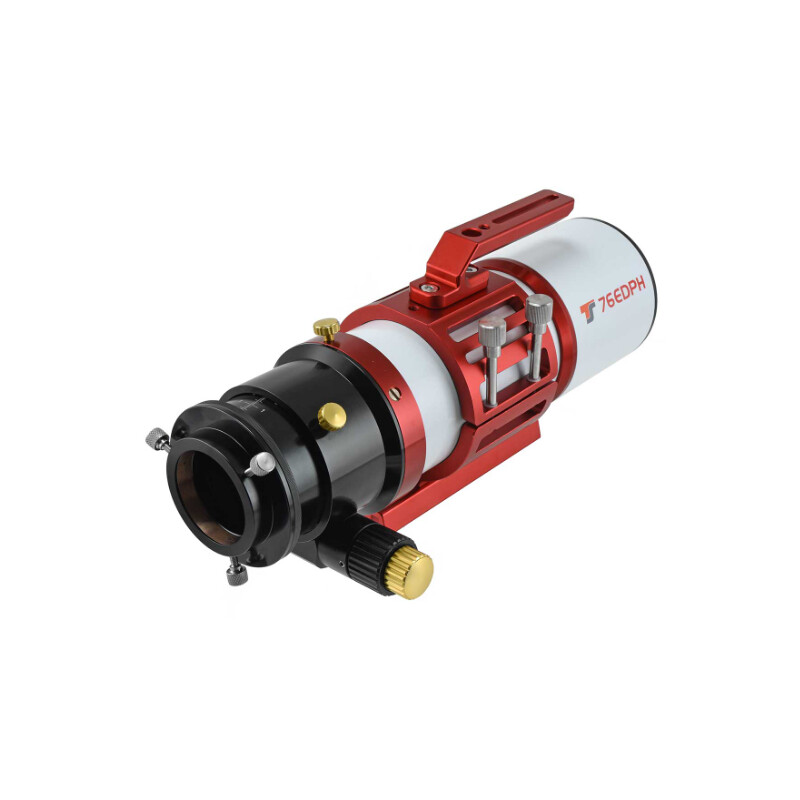

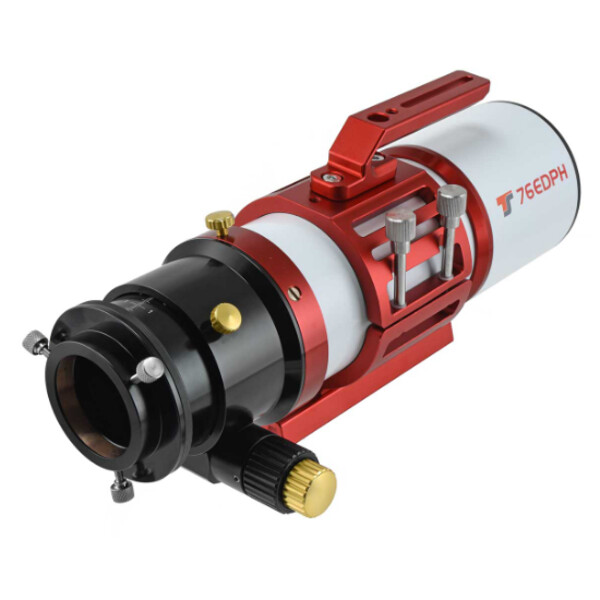

Apokromatisk refraktor AP 76/418

på kort sikt
leveransklar om 3-7 dagar + Frakttid

Beskrivning av artikel

Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

Portable at home or for travelling. Always great shots

On top of a mountain or in the desert. An excellent night also requires an excellent telescope. But good conditions are not to be found everywhere. This small apochromat is so compact you can take it with you wherever there is a clear sky. It makes good astrophotography even more mobile.

The highlights at a glance:

  • 76mm triplet ED Apo with three lenses for a colour-pure image with good contrast
  • Retractable dew cap for easy transport
  • 3" focuser with a 1:10 reduction ratio: Easily focus larger and heavier cameras with high precision.
  • Camera rotates 360° so you can find the right orientation
  • Vixen-type finder shoe so you can easily mount any finderscope

Why these optics reveal more details
No more images without contrast. This apochromat shows what is really possible: pure-colour and high-contrast observations and astrophotos. The key is a sophisticated optical design with premium ED glass for a crystal-clear image. Compared to most mirror systems, the better-defined optics allow you to see more and finer details when observing the planets, for example. All surfaces of the lens elements are treated with an effective multi-coating to prevent reflections. Enjoy memorable observations and shots.

2" connector

The focuser has a standard 2" connection with a reduction to 1.25". This allows you to connect all accessories from our range, such as eyepieces and adapters.

CNC tube designed for the best optics
The tube of the Omegon Apo consists of a CNC machined metal construction with a sophisticated anti-reflective aperture system. The entire tube is lined with a velvet-like, black fabric.

Extending and fixing the dew cap
The Apo's dew cap can be extended. It can be retracted for transport.

The carrying handle is a truly multi-functional part: The handle not only makes mounting on a photo tripod easier, but is also the basis for further adaptations. The handle has a slotted hole and a 1/4" photo thread. You can attach a ball head to it and mount a second camera in parallel, for example. Next to the carrying handle is a finder shoe for finder scopes, mini telescopes or red-dot finders.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Tekniska data

Optik


Typ
Refraktor
Typ av byggnad
Apokromat
Öppning (mm)
76
Brännvidd (mm)
418
Öppningsförhållande (f/)
5,5
Upplösningsförmåga
1,82
Gränsmagnitud (mag)
11,2
Ljusinsamlingsförmåga
120
Max användbar förstoring
152
Tubkonstruktion
Sluten tub
Beläggning
multipel
Linsdesign
Triplet
Korrigerat bildfält (mm)
44
Daghuvsdiameter (mm)
100

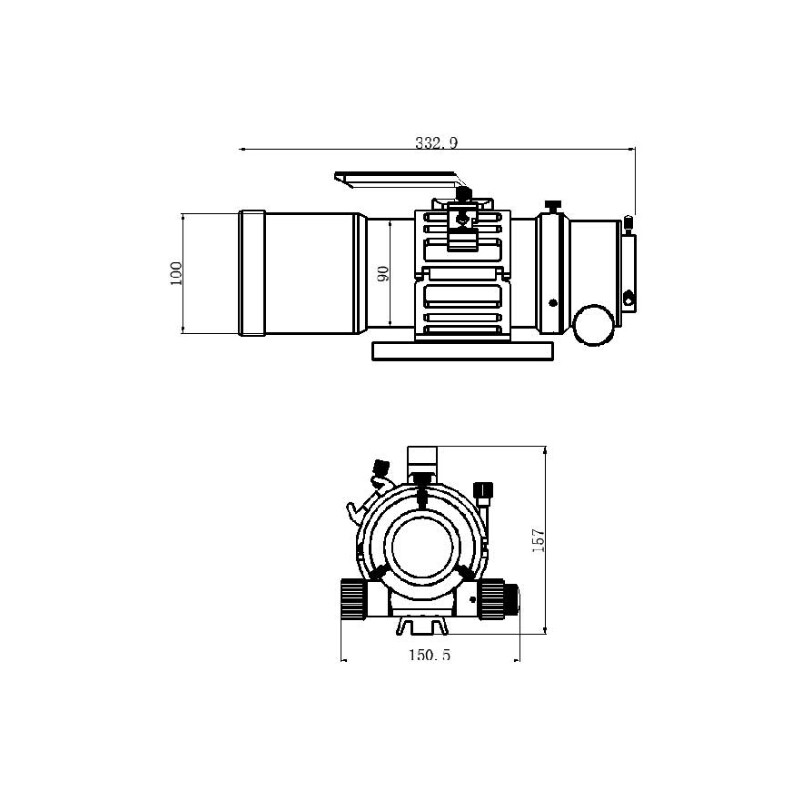

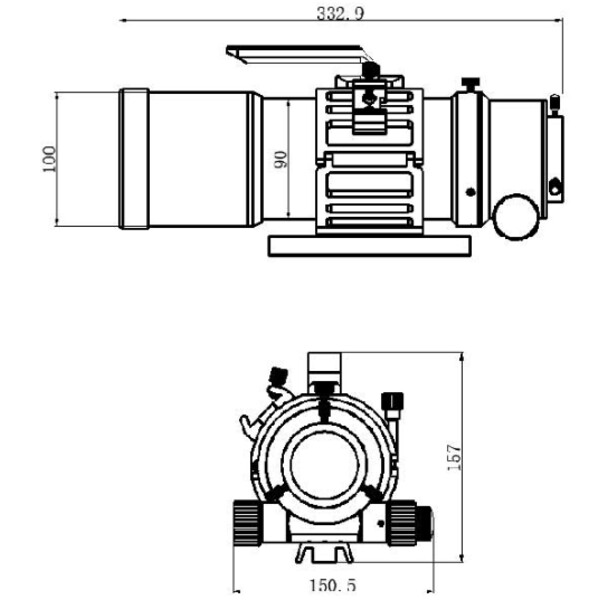

Transportlängd (mm)
333
Tubdiameter (mm)
90

Fokuserare


Typ av byggnad
R&P-kuggdrift
Adapter (på okularsidan)
2
Vridbar
Ja
Nedväxling
1:10 fininställning
Inställningsintervall (mm)
58
Ringklämma
ja
Fri öppning (mm)
76

Montering


Typ av byggnad
OTA
GoTo-styrning
nej
Monteringstyp
utan montering

Medföljande tillbehör


Okularadapter
1,25" & 2"
Rörklämmor
Ja
Sökarsko
Vixen/Skywatcher Level
Prismaskena
Vixen-Style
Korrektor
utan
Testprotokoll
nej

Allmänt


Serie
EDPH
Totalvikt (kg)
3,5

Användningsområden


Naturobservation
nej
Måne och planeter
ja
Nebulosor och galaxer
ja
Astrofotografering
ja
Sol
nej

Rekommenderas för...


Nybörjare
nej
Avancerade
ja
Observatorier
ja
