The new high-end telescope from Knaeble Engineering

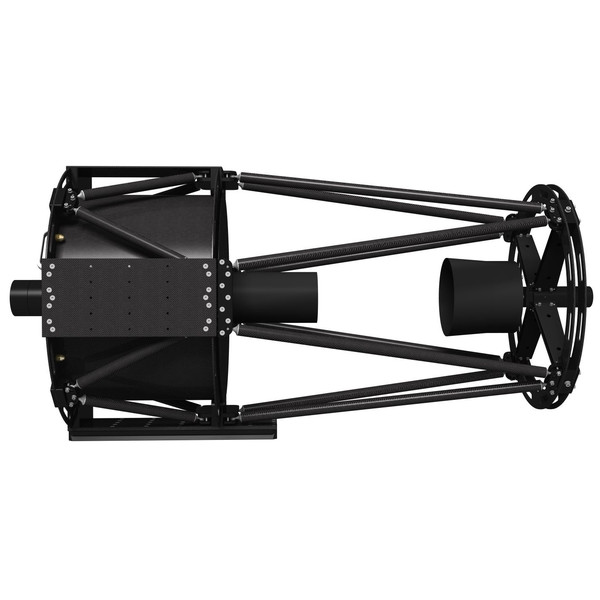

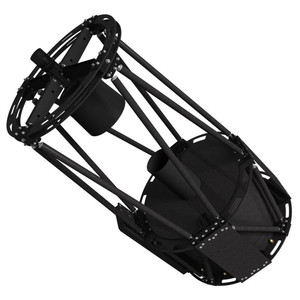

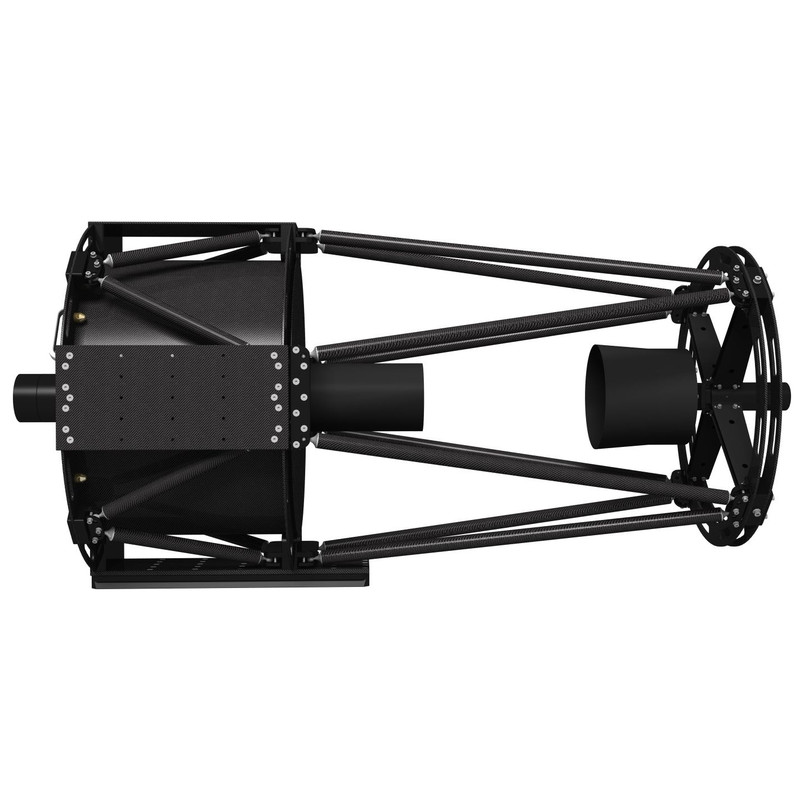

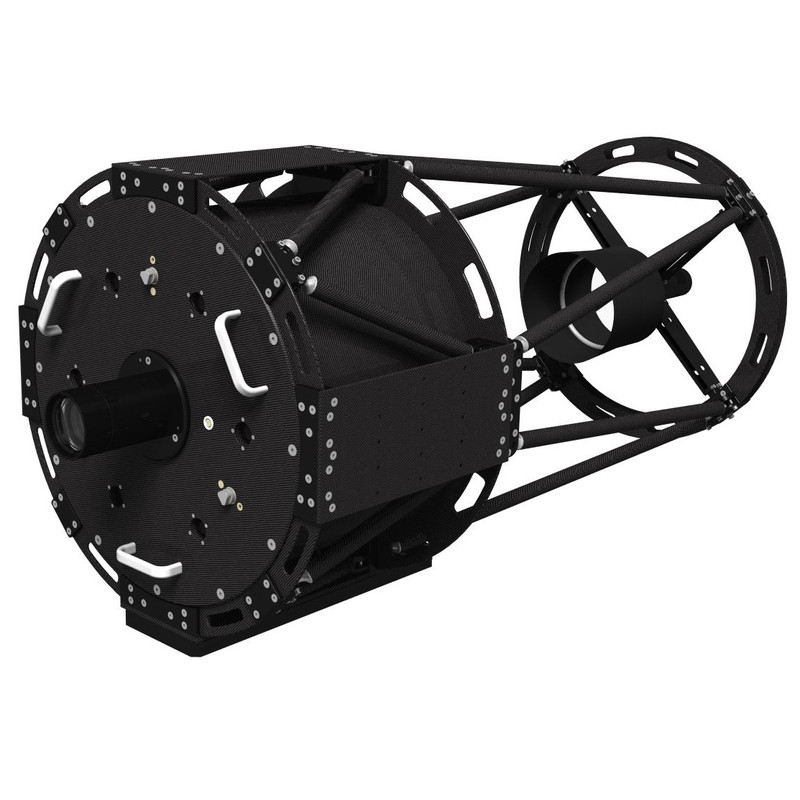

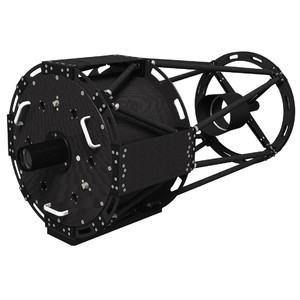

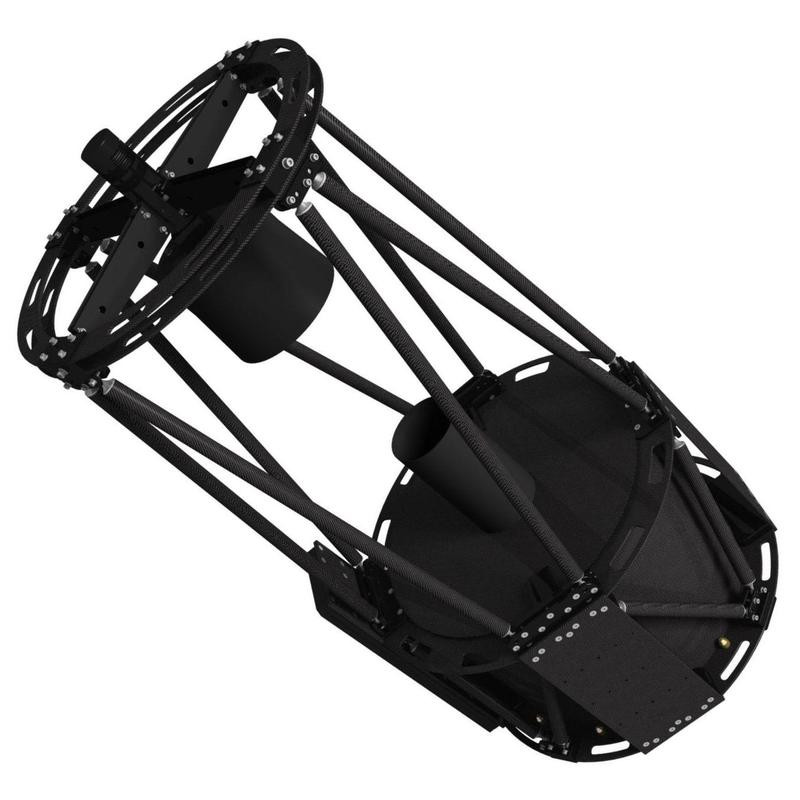

This extraordinary telescope is the result of almost three years of development work. The result is a truss-tube construction Ritchey -Chrétien telescope made of high module carbon-fibre. The connection components for the truss tubes and the adjustment bolts are made of CNC titanium (grade 5). No other telescopes of this class are so light and so temperature and dimensionally stable - even under unfavourable wind conditions and mechanical loads.
The Ritchey -Chrétien telescope (RC) is a special type of Cassegrain optical design that employs hyperbolic primary and secondary mirrors. This design prevents coma - which is a typical aberration of reflecting telescopes. Moreover, the system has a relatively short OTA - a compact design with an f8 aperture ratio, which is both compact and mechanically rigid. The field of view of the Ritchey-Chrétien is also very large. These advantages mean that most modern professional telescopes of are of this design - for example, the four 8.2 meter telescopes of the VLT telescope at the European Southern Observatory (ESO) in Chile.
The telescopes have been designed and built by Knaeble Engineering in Berlin. Each instrument has been individually produced - modelled by Dassault CATIA and structurally designed using finite element analysis. Each telescope hence exists twice - in the real world and in the virtual observatory of the database at Knaeble Engineering. This means that each instrument can be individually serviced throughout its life cycle and individual adjustments can be made to it.
Producing high quality Ritchey -Chrétien optics can be problematic, as each mirror is unique in terms of thickness, diameter and curvature. This means that a standardized primary mirror cell will inevitably lead to astigmatism. Knaeble Engineering takes the opposite path and designs a cell specifically for each optical system in which the mirror can sit free of tension.
Your observatory operates to the highest standards:
- optical quality - 1/16 wave, 94%
- mirror material - Schott Suprax glass
- maximum spot size field diameter - 40mm
- The connection between focuser and OTA is tiltable. The position of the focal plane is approximately 225mm from the back of the OTA.
- Included in delivery:
- RC FC / Ti telescope
- Feathertouch 3.5" focuser
- Takahashi collimator
- two carbon-fibre/aluminium Losmandy 3" 'torsion box' prism rails
- carbon-fibre covering
- transport case
