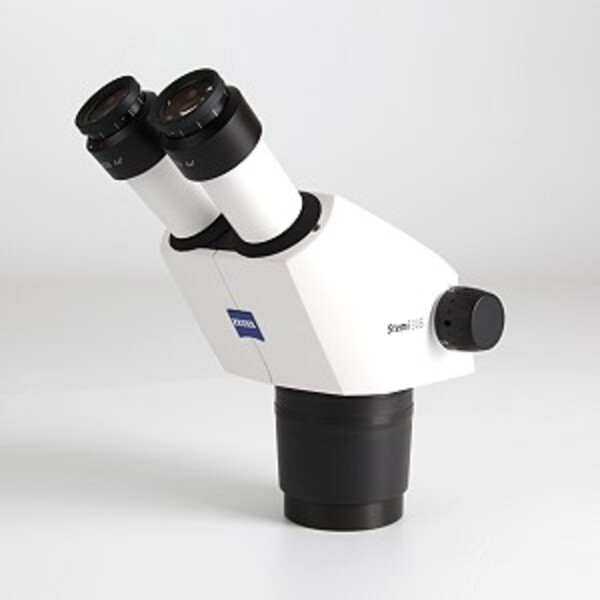

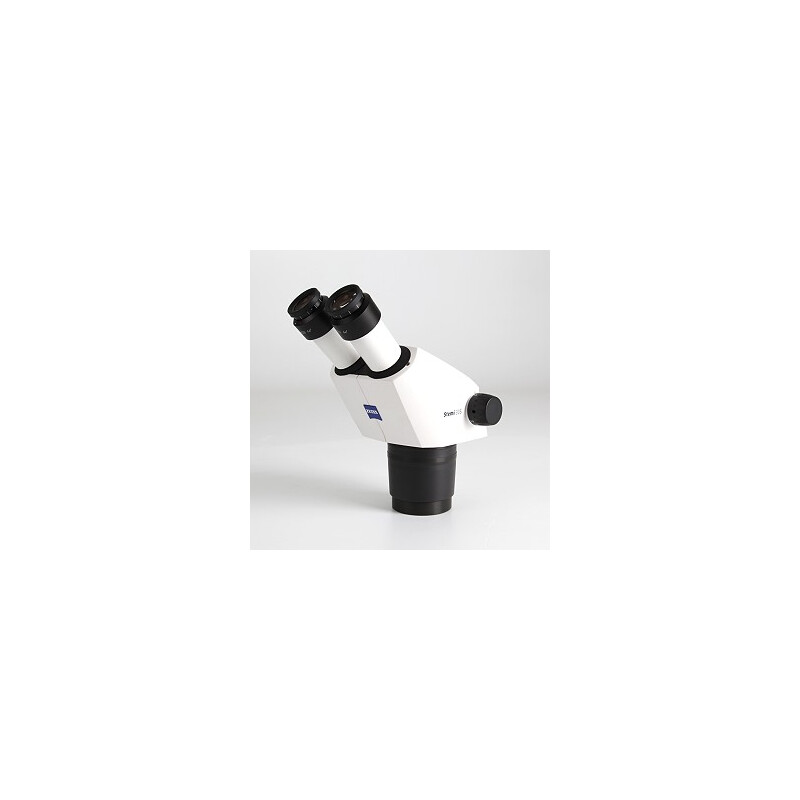

Stemi 305 microscope body
The Stemi 305 is your compact Greenough stereomicroscope for biology lessons, or the industrial production environment. The 5:1 zoom gives you magnifications of 8X to 40X without ancillary lenses (4X to 200X with ancillary system)
- camera output with fixed assignment of 50vis:50doc and 0.5X C-mount
- Greenough system with 11° stereo angle
- manual 5:1 (0.8X to 4.0X) zoom, can be operated from both sides
- fixed zoom click-stops at 0.8X-1X-2X-3X-4X
- free working distance 110mm
- 45° viewing angle with adjustable 55 to 75mm interocular distance
- 30mm eyepiece with maximum field number of 23mm
- microscope receiver D=76mm for Stemi mount/S mount
- Interface D=66mm for lighting units
- M52 thread for front optics or polarizer
- LED lighting integrated almost perpendicularly into the optics (IVI) for K EDU/LAB/MAT stands or K LED controller
- 2 eyepieces, 10x23, br. foc.
- RJ12 spiral cable
