Zoom-stereomikroskop Stemi 305, LAB, bino, Greenough, w.d. 110 mm, 10x/23, 0.8x-4.0x

Stemi 305 is your compact Greenough stereo microscope with 5:1 zoom for biological education, labs and industrial production environments. Observe your samples as they are: three-dimensional and crisp in contrast - no preparation required. Profit from this easy-to-use microscope, where everything is integrated: long-living LED illumination for reflected and transmitted light and documentation, too. Choose between the conventional phototube to have access to all ZEISS microscope cameras or the integrated 1.2 Megapixel Wifi camera to connect several microscopes and share your images via WLAN

Mehr über Mikroskop-Serie Stemi 305...

All-in-One Device

Stemi 305 integrates everything you need – various illumination and documentation.

This compact Greenough stereo microscope comes without additional boxes and cables - just plug it in and switch it on, that’s the installation done

Stemi 305 can easily be operated, also by untrained users. All you have to do is illuminate your object, focus and start snapping images.

Integrated Illumination. Crisp for Any Application

Easily select and mix the integrated LED illuminations: near vertical reflected light, so as transmitted light.

White LEDs generate bright light of day­light color, so each image appears crisp and clear.

You profit from long lifetimes and low energy consumption. LEDs stay cool and they are noiseless and mainte­nance-free.

Integrated Documentation

Choose between two options for documentation:

Decide for the conventional phototube and get access to all ZEISS Axiocam microscope cameras.

Or choose the integrated camera and Wi-Fi router. With the iPad imaging app Labscope you create your own virtual classroom and share your images.

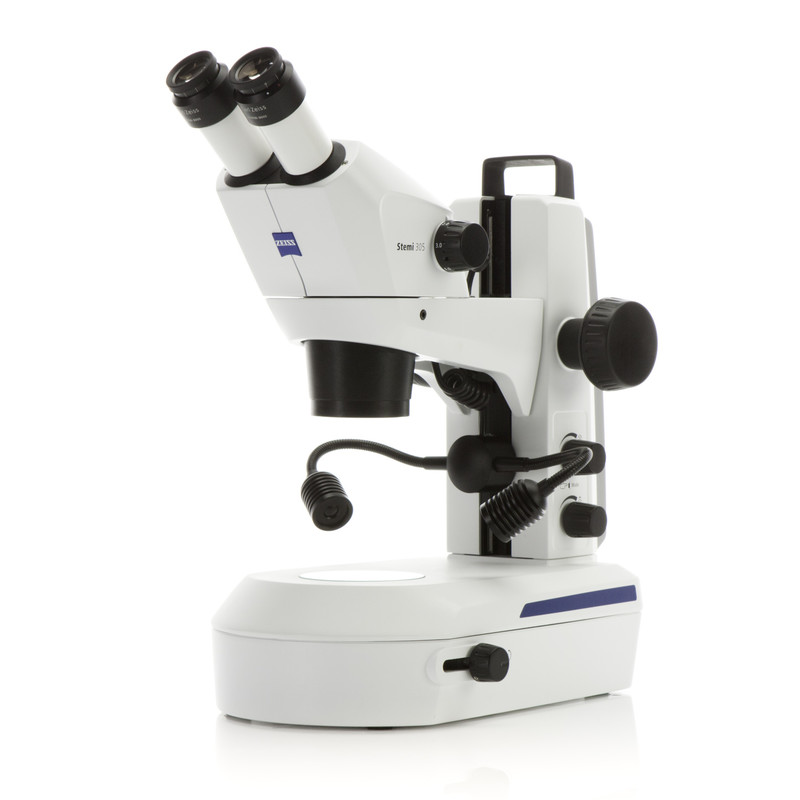

ZEISS Stemi 305 LAB Set

ZEISS Stemi 305 microscope with stand and lighting, ready for use, particularly suitable for the biology laboratory and for education courses focusing on unstained samples.

Consisting of:

Stemi 305 microscope body

• Greenough system with 11° stereo angle
• manual 5:1 (0.8X to 4.0X) zoom, can be operated from both sides
• fixed zoom click-stops at 0.8X-1X-2X-3X-4X
• free working distance, without front optics, 110mm
• viewing angle 45° with adjustable interocular distance 55 to 75mm
• 30mm eyepiece with maximum field number of 23mm
• interface to microscope D=76mm for Stemi mount / S mount
• interface D = 66 mm for illuminators
• M52 thread for front optic or polarizer

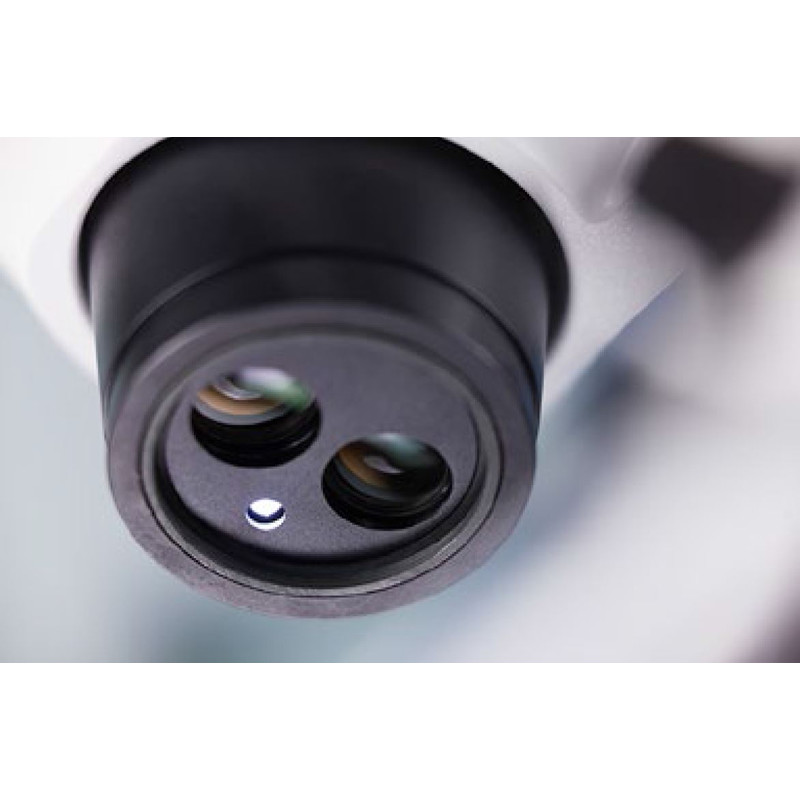

• LED lighting integrated almost perpendicularly into the optics (IVI) for K EDU/LAB/MAT stands or K LED controller
• 2 eyepieces, 10x23, Br. foc.
• RJ12 spiral cable

K LAB tripod

• stand W190xD310xH95 mm
• working surface W160xD195 mm
• interfaces, d = 84mm for stages and d = 45mm for DL ​​polarizer
• 250mm column with focus drive and handle, travel range 145mm
• Stemi mount , d = 76mm, capacity 5Kg, adjustable friction

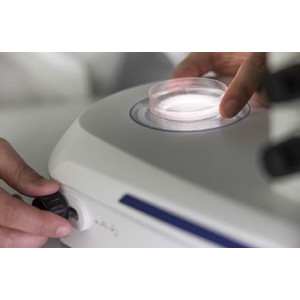

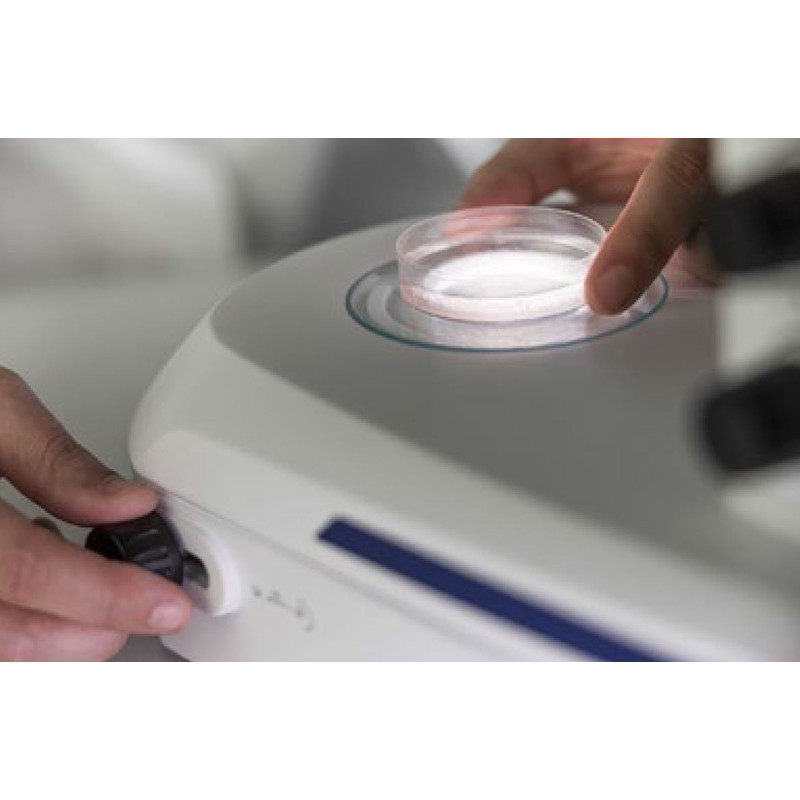

• Built-in LED transmitted light unit, with rotating and sliding mirror, for brightfield, darkfield and obliquely transmitted light
• 2 sockets - for IVI and K LED lamp
• separate AL / DL controls for on / off / dimming
• built-in power supply: 12V DC 24W / 100 to 240V AC / 50 to 60Hz
• glass and B/W plastic plate, D = 84x5mm
• country-specific power cable, EURO C7
• dust cover

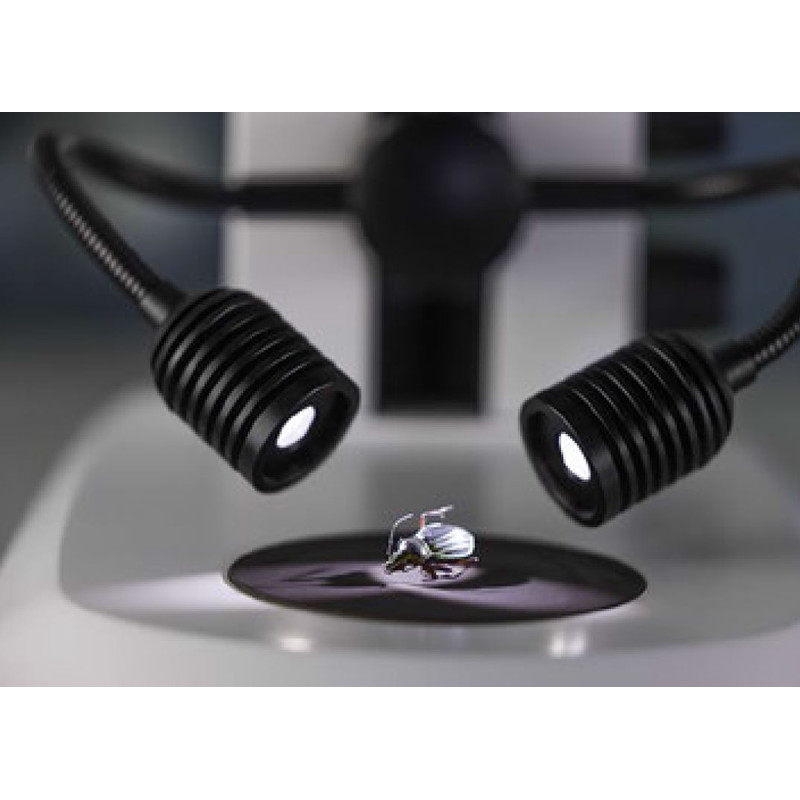

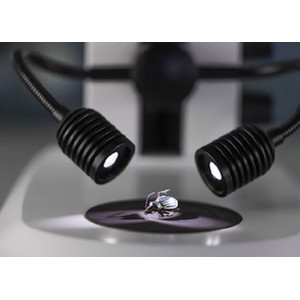

LED K double spot light

• gooseneck double spot, 2x 160mm for variable incident lighting
• 2 M24x0.5 threads for polarizer
• adjustable height
• for K EDU / LAB / MAT stands
