SZM series - Advanced Stereomicroscopes for Teachers and Middle-level professional stereo microscopes.
The stereomicroscopes of the SZM series are instruments specifically designed for high-level education, laboratory and industry applications.
Their optical and mechanical qualities place them at the top of that sought-after category of appliances and the price/quality ratio is exceptionally good. Sharing the same optical system consisting of binocular and trinocular heads with zoom objectives, the four models of the SZM series find their proper application wherever professional instruments are required at a particularly contained cost.
The numerous accessories provide an ample choice of possible configurations and extend the flexible use of the instruments.
Heads
Binoculars and trinoculars 360° rotating and 45° inclinated.
Interpupillary distance
Adjustable between 51 and 75 mm.
Dioptric compensation
On both eyepiece tubes (bino & trino).
Eyepieces
EWF10x/20 mm (high point) for people wearing spectacles.
Objectives
Parfocal achromatic zoom 0,7x...4,5x (6,428:1 zoom factor).
Specimen stage:
Models with illumination are fitted with a black/white disc for contrast, specimen clamps and a frosted glass disc for transmitted light.
Focusing
Bymeans of a rack and pinion controlled by a pair of knobs placed on both sides.
Illumination
Double adjustable illuminator for incident and transmitted light fitted with two 12V/15W halogen bulbs. 230V/50Hz power supply.
The SZM microscopes vary in regard to the microscope stand, the illumination and the head.

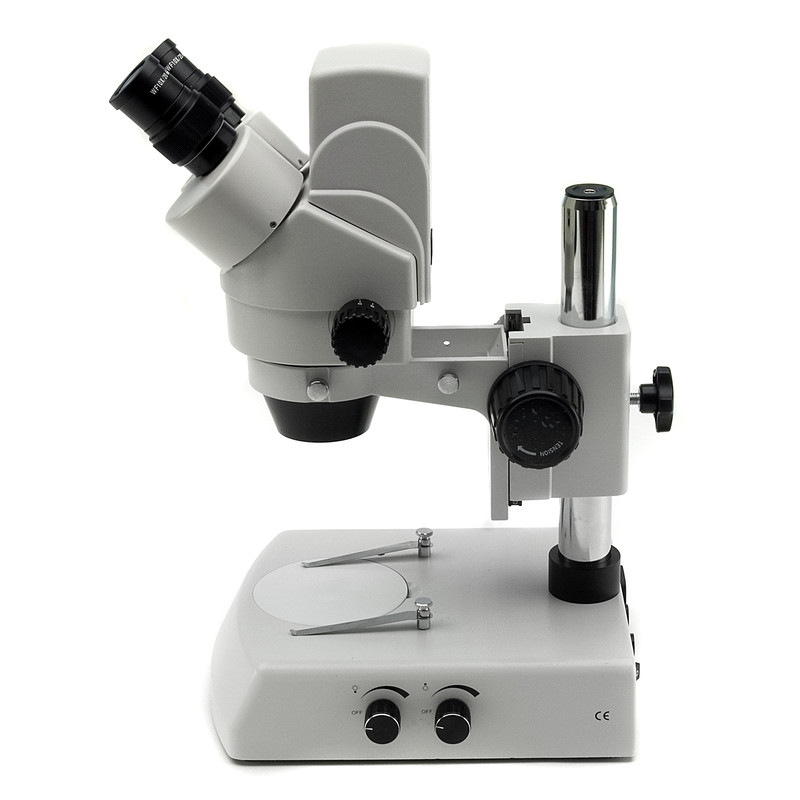

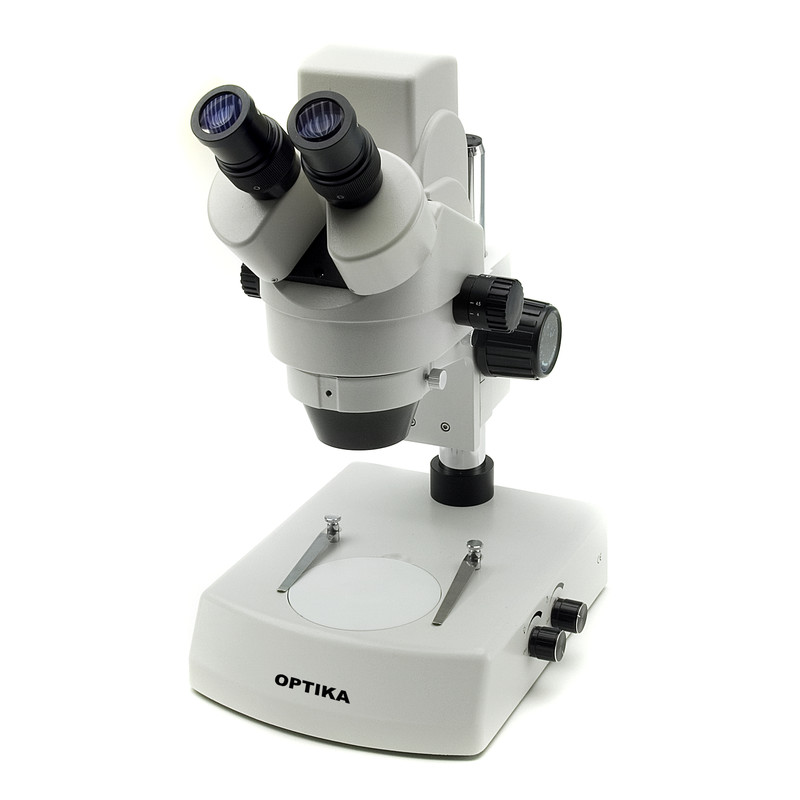

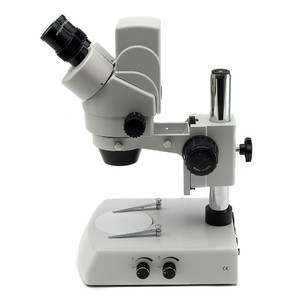

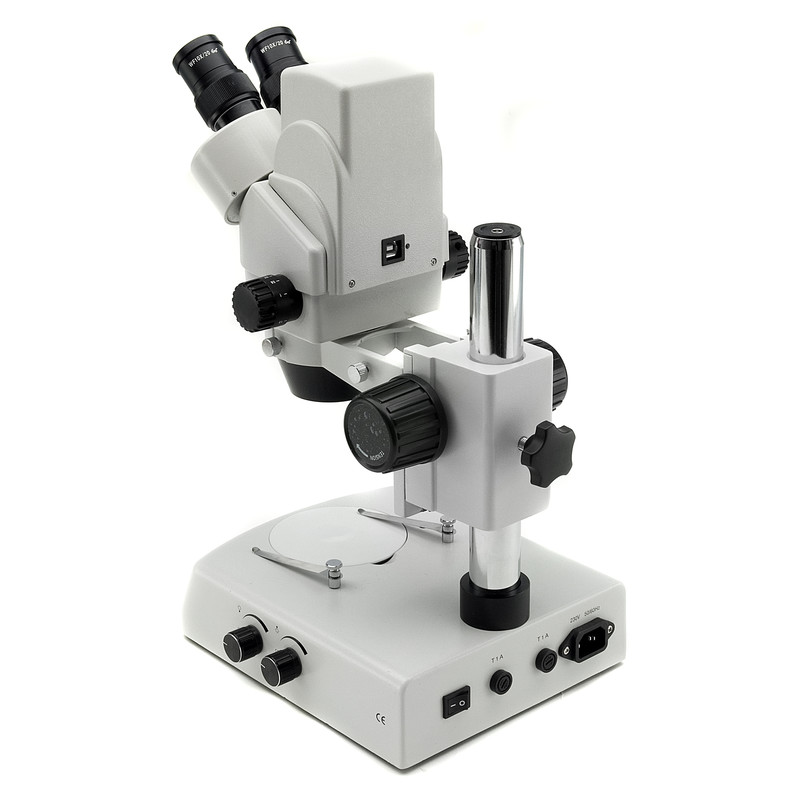

SZM-2
- Illumination: Double for incident and transmitted light. 12V/10W halogen bulbs. Brightness control.
- Microscope stand: Pillar stand
- Head: Trinocular
TECHNICAL SPECIFICATIONS OF THE BUILT-IN CAMERA:
- Resolution: 1280 x 1024 pixels (1.3 M pixels)
- Sensor: CMOS 1/2"
- Pixel Size: 5.2 µm x 5.2 µm
- Imaging Area: 6.67 mm x 5.33 mm
- Frame Rate at Full Resolution: 7.5 frames/sec
- Frame Rate at Half Resolution: 15 frames/sec
- Optical Format: 1/2"
- Aspect Ratio: 5:4
- S/N Ratio: max 45 dB
- Dynamic Range: 68.2 dB
- ADC: 10 bit
- Data Output (Uncompressed Video): 3x8 bit
- Exposure Range: 0-70 msec
- Sensitivity: 1,0V/Lux-second
- C-Mount Lens Adapter: no
- System Requirements: Widows 2000 / XP SP2 / Vista / Seven 32bit, USB 2.0
- Software: Optika Vision Lite, TWAIN interface, several freeware for image elaboration.
- Capture Features: Continuous auto white balance, continuous auto exposure.
- Included with the camera: Optika Vision® software package, 1.5 m USB cable.
