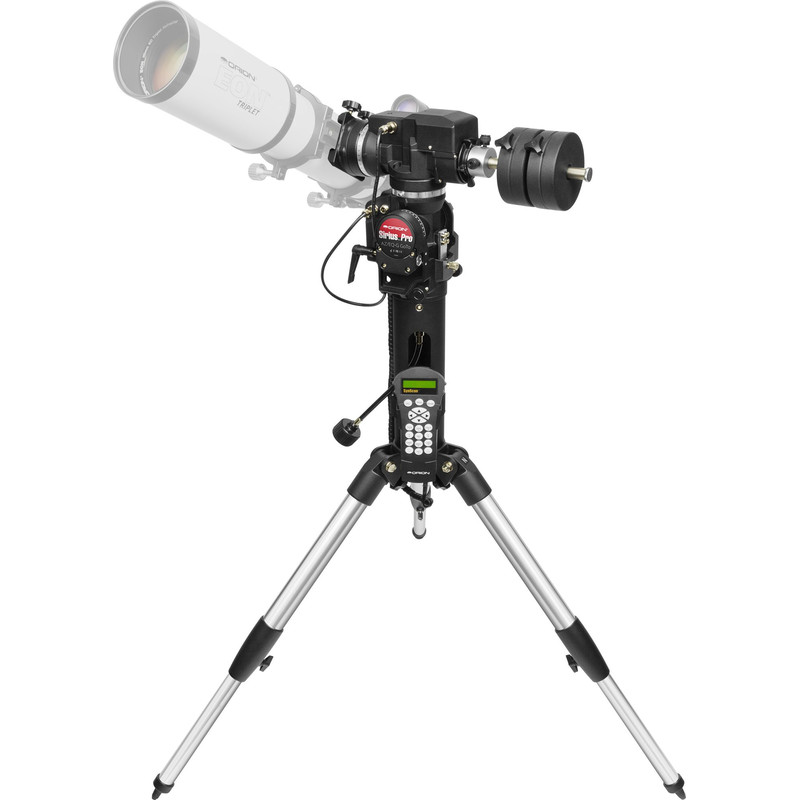

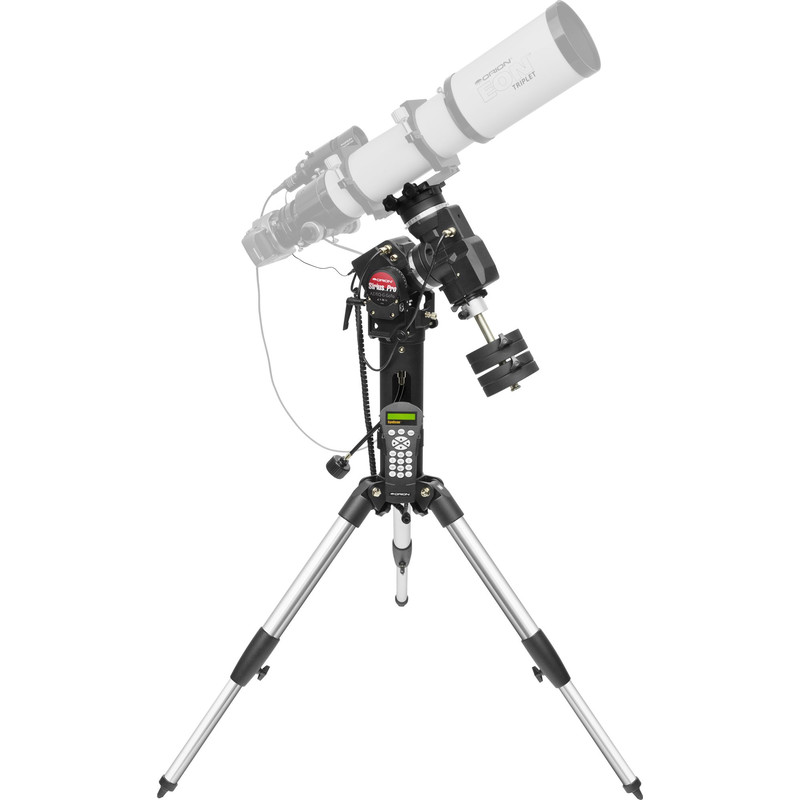

The AZ-EQ is a dual purpose, fully functional computerised heavy-duty Go-To/Tracking astronomical mount in both Alt-Azimuth (AZ) and Equatorial (EQ) modes.

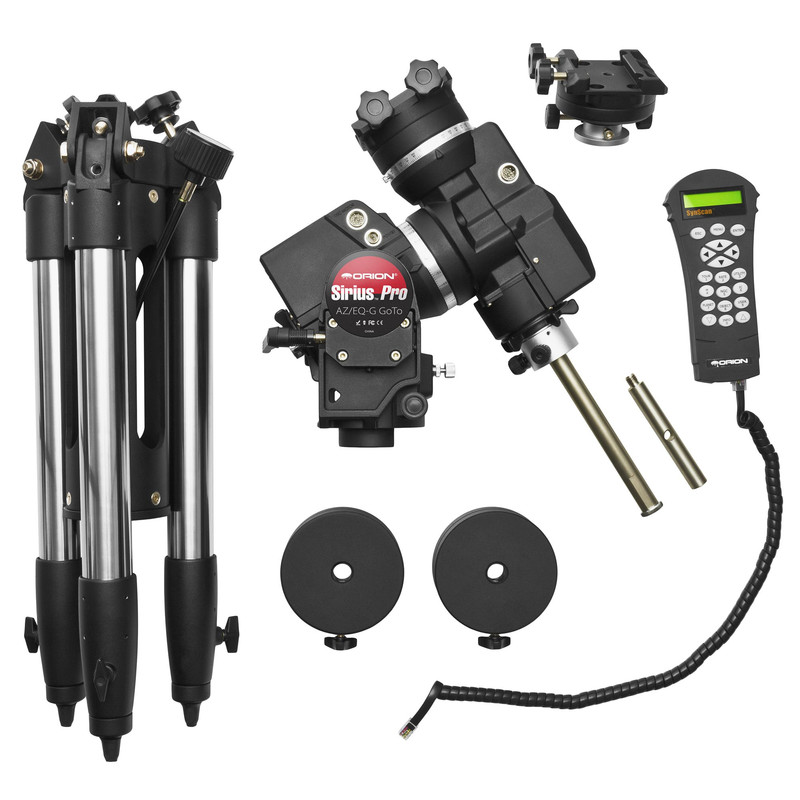

Supplied with a Synscan computerised handset with dual AZ/EQ firmware, it can automatically find and track over 42,900 celestial objects from its database.

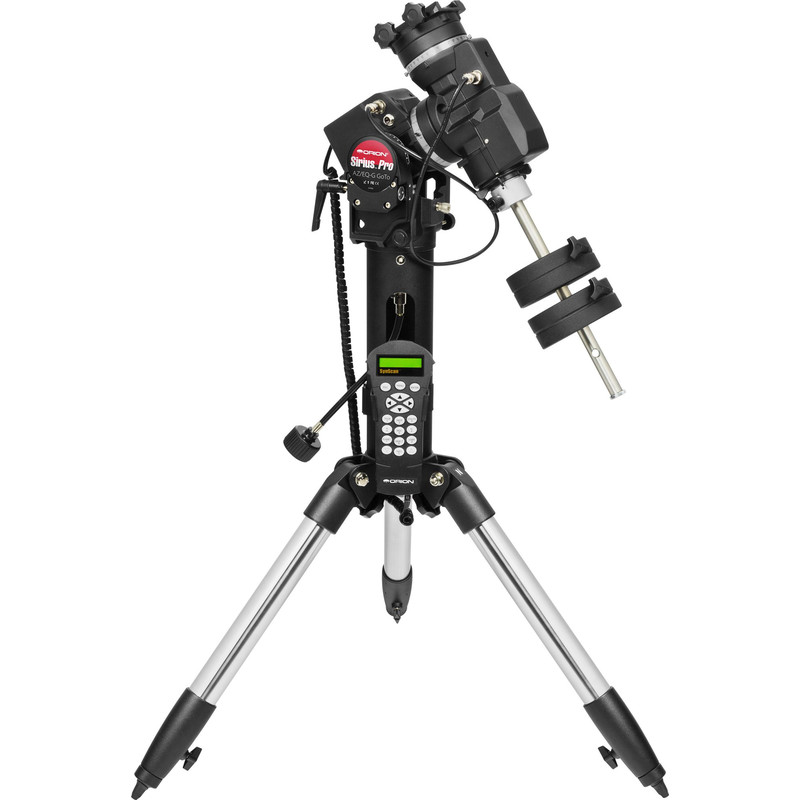

In EQ mode, the AZ-EQ5GT is designed for either visual use or precise astro-imaging.

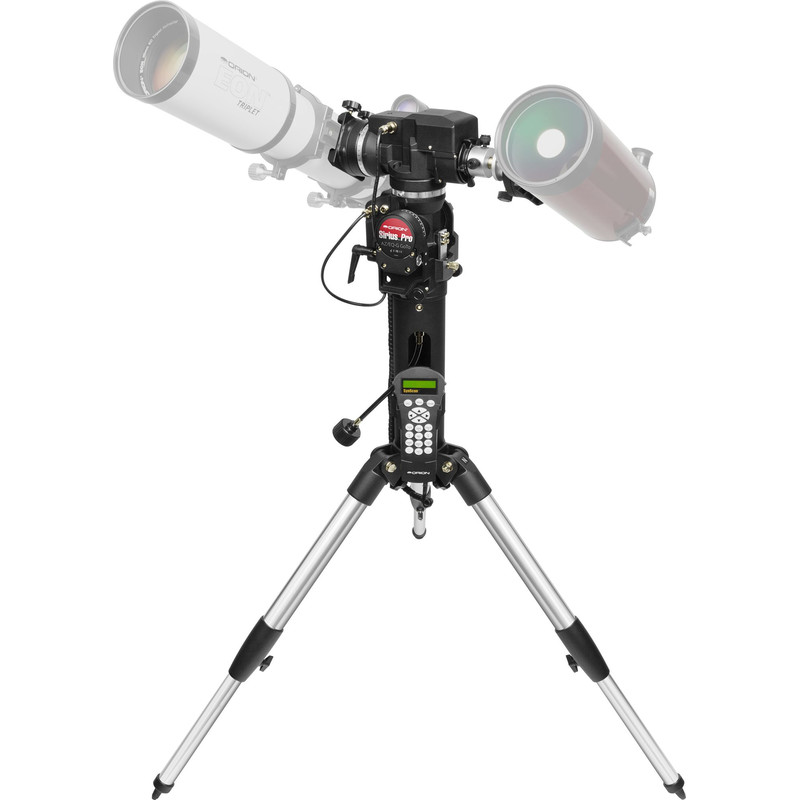

In AZ mode, it is primarily intended for visual use, and in this mode, two telescopes can be mounted simultaneously in parallel.
A great feature of the AZ-EQ5GT is the patented ‘Freedom-Find’ dual-encoder technology. This allows the telescope to be moved manually in either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.
- Transmission: 135:1 Worm Drive + 36:12 Timing Belt Drive + 64 Micro-Step/1.8° Stepper Motor Drive
- Gear Ratio: 810
- Resolution: 5184000 Counts/Rev (approx. 0.25 arc-second)
- Maximum Slewing Speed: 3.4°/second
- Auto-Guiding Speed: 0.125x, 0.25x, 0.5x, 0.75x & 1x
