IS
Discover how inspections can be extremely easy and quick with OPTIKA! Forget about looking into the eyepieces: go for convenient, cost effective & extremely flexible solutions. The digital microscopy camera technology allows you to observe smalls object and to document your work, enabling also
multiple viewers at the same time and thereby greatly improves collaboration.Ergonomy plays an important role in inspections, and OPTIKA range is considering this aspect to increase the efficiency and eliminate strains. Know more about the comprehensive OPTIKA range: suitable in a variety of quality control processes
SI-02

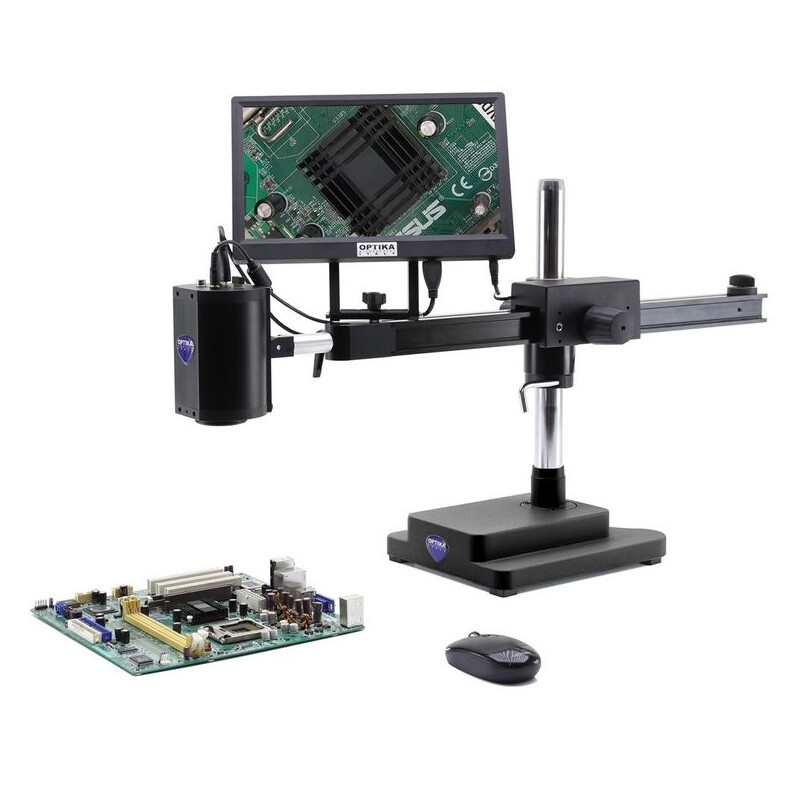

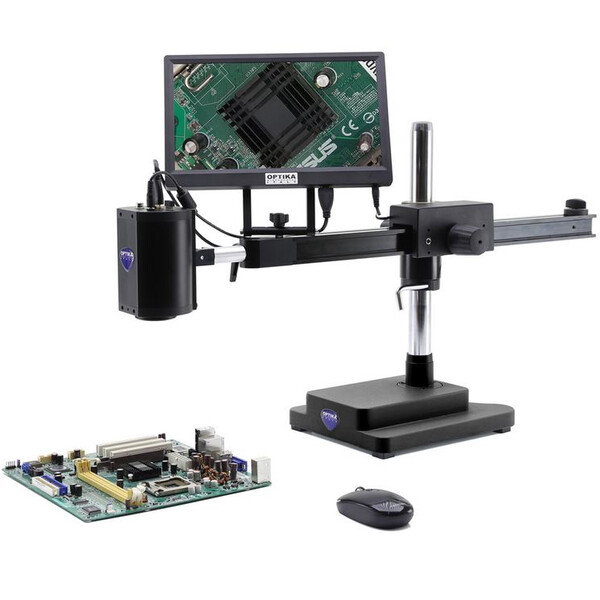

Advanced video inspection system, consisting in an extremely solid, accurate boom stand and a full HD autofocus camera (C-HAF). OPTIKA C-HAF is a real-time full HD auto-focus inspection camera, with 2 MP resolution to view crystal clear 1080p images/videos on HD monitor, through HDMI connection at 60 fps. Its angle of view is fully adjustable. Achieve instant focus without the need to constantly adjust your lens with the incredibly fast focusing system (acquisition time is lower than 1 sec.). The working distance is between 10cm and infinity, making it the ideal solution to inspect multi-layered objects, extremely quickly.
The camera is equipped with 1x-14x optical zoom and 1x-6x electronic zoom. All functions are controlled directly from the screen. The boom stand is equipped with a special joint to enable any rotation (both transverse and longitudinal): the longitudinal movement is through the sliding of the horizontal rail (lockable); whilst also the overall height is both adjustable and lockable.
Specification
CAMERA
Image Sensor: CMOS sensor Sony Exmor
Sensor dimensions: 1/2.8”
Effective pixels: 2 MP
Output: HDMI
Power: DC5V
Operation control: Remote control
Scanning: Progressive Scanning
White balance : Manual/Auto/OnePush
Exposure: Manual/Auto
Shutter speed : 1/50s(1/60s)-1/10000s
SNR: >50dB
Frame Rate: 1080p@60fps
Operating Temp: 0°C – 50°C
Weight: 500g
Optical Zoom 1x-14x
Digital Zoom 1x-6x
Working Distance: From 10cm to Infinity
Focusing System: Autofocus / Manual focus
STAND
Type: High-performance boom stand. 3D-joint for easy camera positioning. Sliding horizontal rail for longitudinal positioning. Adjustable longitudinal limit. Adjustable and lockable height. Mount for LCD screen.
Base dimensions: 210×257 mm.
Pillar: Ø32×425 mm.
Horizontal arm: 750 mm (movement range 330 mm).
Swivel: 360°
Tilt: 180°
Weight: 16.25 kg
SCREEN: 11.5” Full HD HDMI LCD Screen. 360° rotating. Freely inclinable for ergonomic vision.
ACCESSORIES: Accessories Included: Wireless mouse, 30 cm HDMI cable 8 GB micro SD, Power supply.
