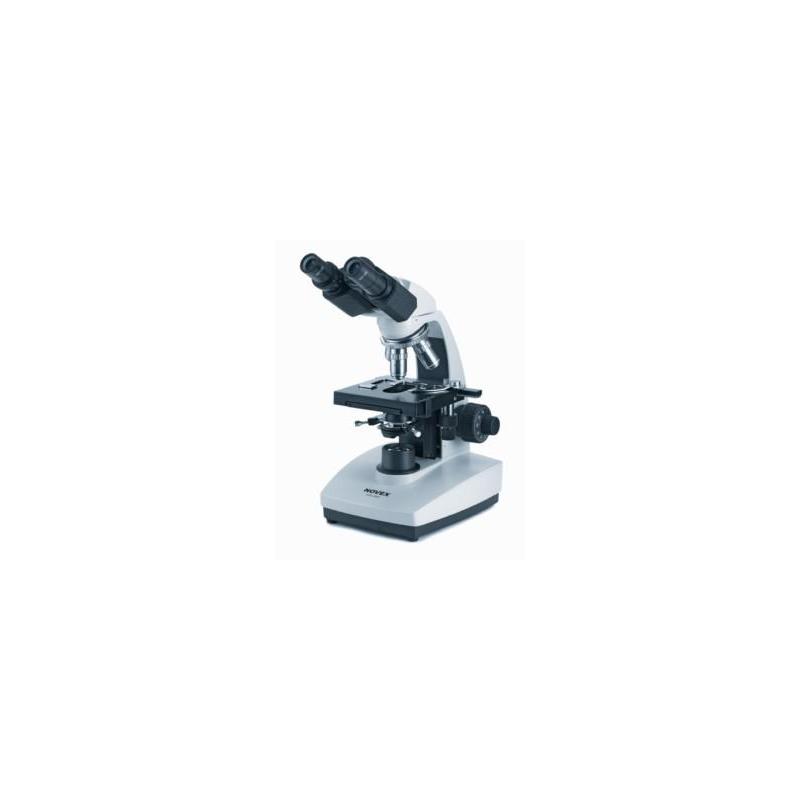

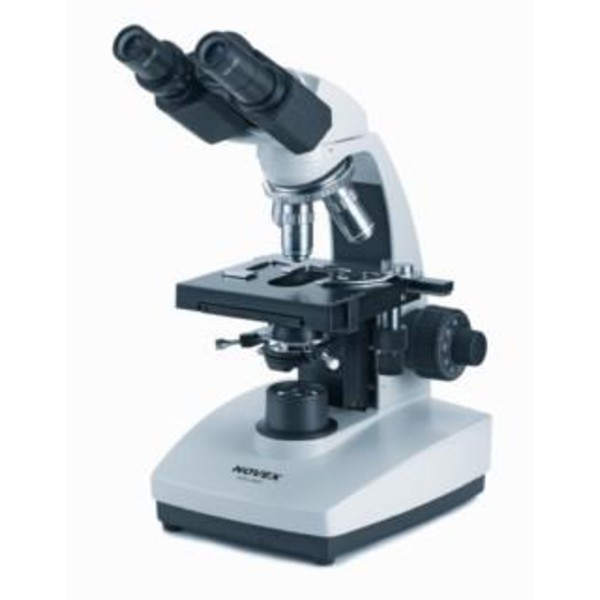

Novex B-series binocular microscope BBP for Bright field contrast
- DIN widefield eyepieces WF10x/18
- Binocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm
Interpupillary distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment - Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
- Plan achromatic DIN-objectives PL 4x N.A.0.10, PL 10x N.A.0.25, PL S40x N.A.0.65 and PL S100x N.A.1.25, oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated
- Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer.
Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval - Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
- Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
- Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer
- Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case
- Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer
