Mikroskopi > Mikroskopitillbehör > Kameror > Kameror > Optika > CCD Cooled > Optika Kamera D1CC Pro, färg, 1,4 MP CCD, USB3.0
Artikelnr: 67809

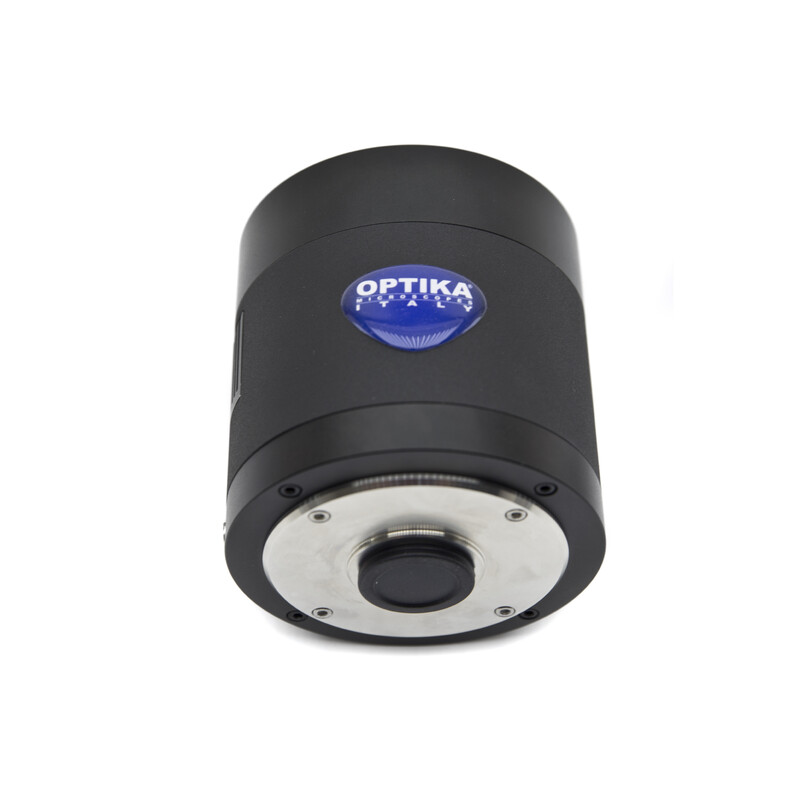

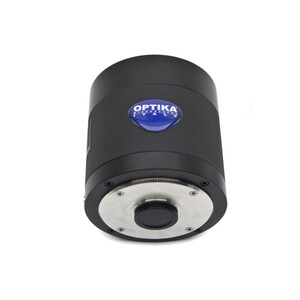

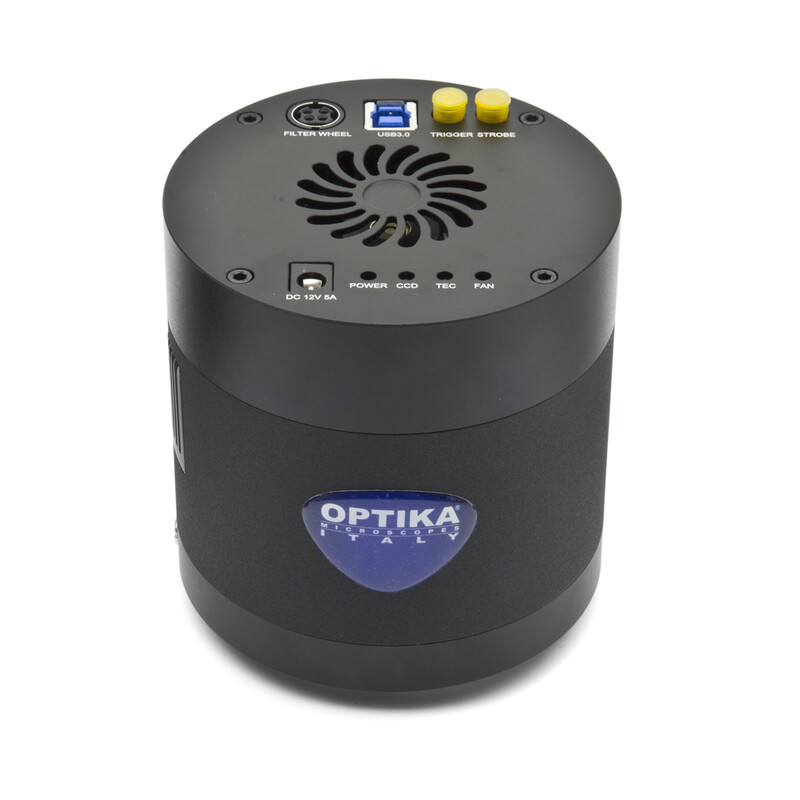

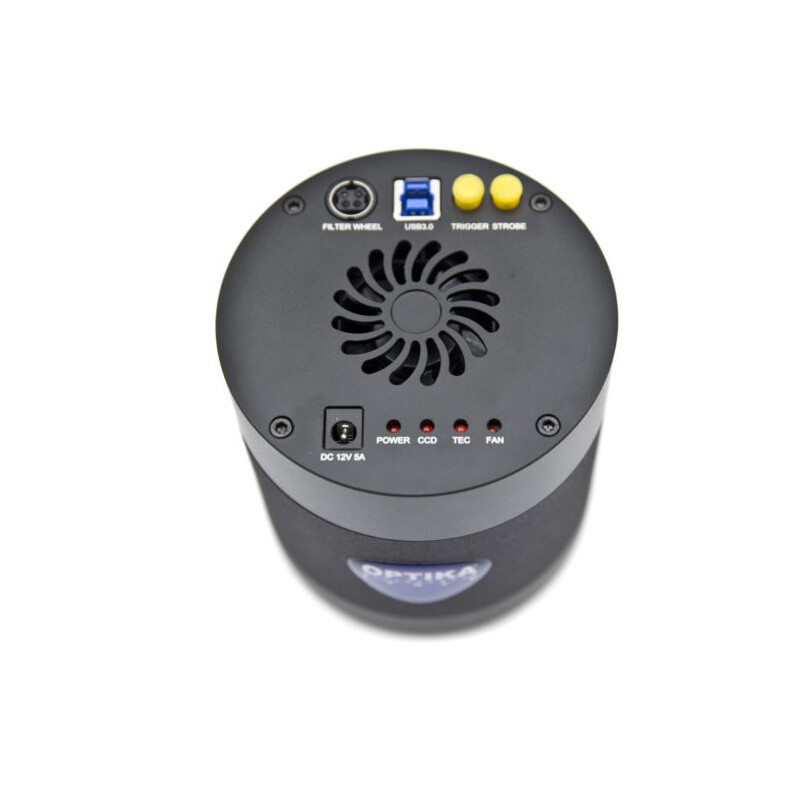

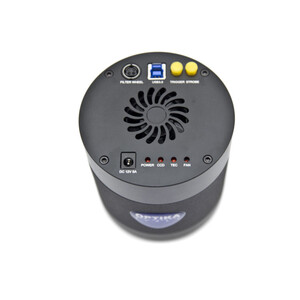

Kamera D1CC Pro, färg, 1,4 MP CCD, USB3.0

Rekommenderat försäljningspris: $ 5.900,00 Vårt pris:
$ 5.300,00 inkl. moms, plus fraktkostnader
inkl. bästa pris-garanti
på lång sikt
Artikeln är inte tillgänglig längre + Frakttid

Beskrivning av artikel

Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

Ultra-professional yet intuitive camera with high resolution, cooled large CCD sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy.

The cooling system affects sensitivity and therefore image clarity.

The compact and elegantly designed housing conceals the very latest in camera technology.

Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.

Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).

Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.

  • Recommended for special applications, including fluorescence
  • Simple operation, driver-free
  • Top-class, large SONY CCD sensor
  • Cooling system for enhanced sensitivity
  • Universal connection to any microscope brand
  • Crisp images
  • USB3.0 for impressive high frame rate
  • Incredibly accurate colors

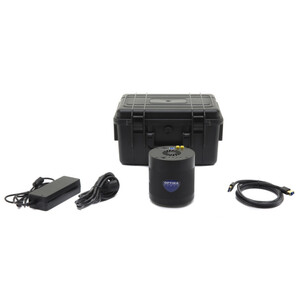

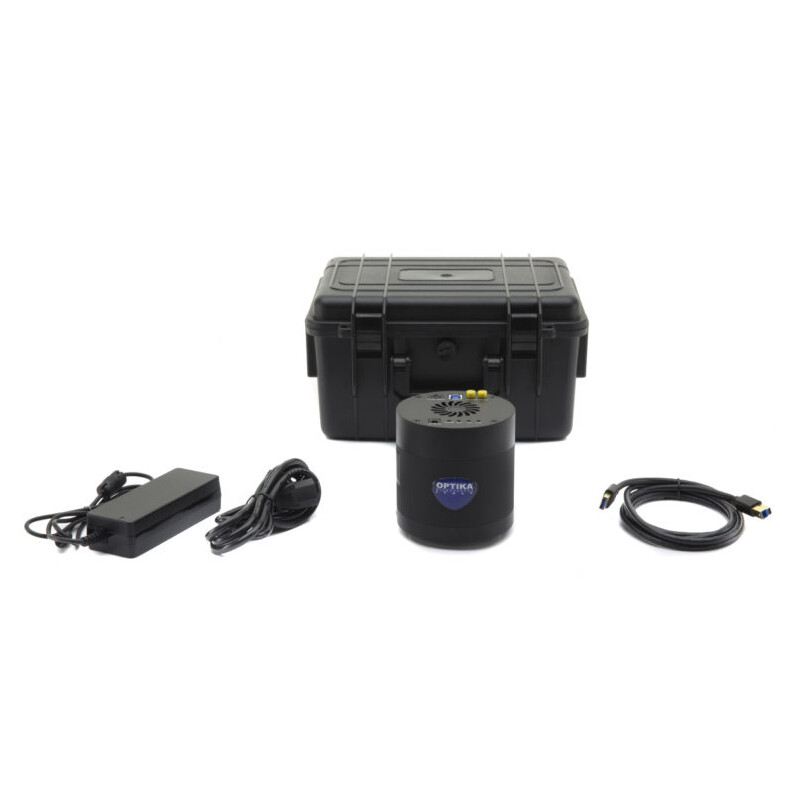

  • USB cable and calibration slide included
  • Downloadable, free of charge software
  • OPTIKA ProView & LiteView for Windows
  • OPTIKA LiteView for Mac OS or Linux

Tekniska data

Prestanda


Chipstorlek (mm)
2/3"
Ljuskänslighet (Lux)
2000mV at 1/30sec
Upplösning foto
1376 x 1040
Bildfrekvens (fps)
25@1376 x 1040

Kamera


Megapixel
1.4
Peltier-kylning
ja
Färgkamera
ja
Pixelstorlek
6.45 x 6.45
Bildöverföring
USB 3.0
Upplösning foto
1376 x 1040
Upplösning video
1376 x 1040
Sensor
CCD (SONY EXVIEW)
Chipstorlek (″)
2/3
Bildfrekvens (fps)
25
Kameraslutare
Rolling Shutter
Exponeringstid min (ms)
0.07
Exponeringstid max (ms)
3600
Känslighet (mV/s)
2V@1/30s
Obligatorisk adapter
0.63x
Programvara
LiteView
Operativsystem som stöds
Win 7/8/10 Mac OS Linux

Allmänt


Färg
svart
Bredd (mm)
100
Höjd (mm)
100
Vikt (g)
500
Serie
CCD Cooled

Användningsområden


Fluorescens
ja
Live
ja
Liten förstoring
nej
Hög förstoring (100x)
ja

Övrigt


Leverantörens produktnummer
C-D1CC
