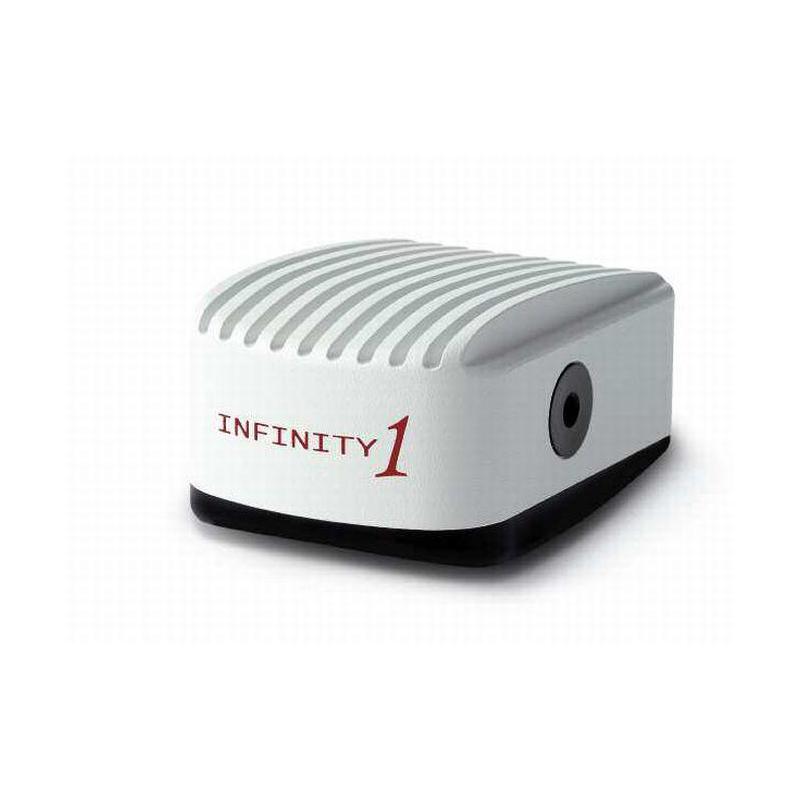

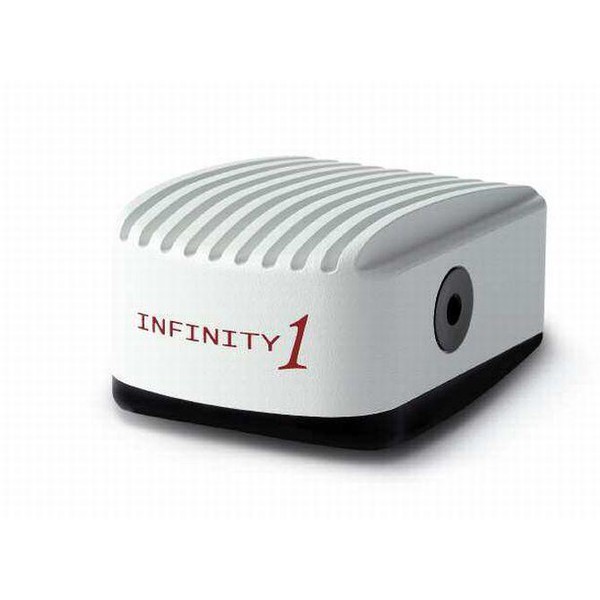

Infinity 1 -1M, 1,3 MP, CMOS monokrom kamera

INFINITY1-1M

Lumenera’s INFINITY1-1M is designed to be a cost-effective, versatile solution for clinical, life science, material sciences and educational professionals.

With 1280x1024 resolution, the INFINITY1-1M delivers outstanding image quality for a wide variety of scientific applications. The low noise characteristic of the INFINITY1-1M progressive scan 1.3 megapixel image sensor results in crisp quality for the most demanding microscopy applications including life science and material science. Full Image Analysis Software Included: Every INFINITY camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images. Third-Party Software Integration: INFINITY cameras are integrated into a variety of third-party software packages through direct drivers or with TWAIN/DirectX support. Mac Camera Software: A Mac camera driver, capture application and ImageJ plug-in are available for the INFINITY1-1M. Please refer to the Microscopy Drivers/Software Downloads page under Support for up-to-date details.

Specification

Product Highlights:

• 30 fps at full 1280x1024 resolution and 120 fps at 640x480 resolution
• Select 8 & 10-bit pixel data modes
• Includes TWAIN and DirectX/ Direct Show support
• High-speed USB 2.0 interface for ease of installation on any computer
• Compact design equipped with a C-Mount, facilitating installation on all microscope configurations including upright, inverted and stereo

Camera settings:

• Image Sensor: CMOS Aptina MT9M001 (Mono)
• Effective Pixels: 5.2 x 5.2 µm
• Optical Format: 1/2”
• Frame Rate: 30 fps (1280 x 1024), 120 fps (640 x 480)
• Dynamic Range: >60dB
• Bit Depth:8 and 10-bit uncompressed

Camera Controls:

• Mass: 300g
• Power Requirement: USB bus power, or external 6VDC - 500mA
• Power Consumption: ~2.5Watts
• Operating Temperature: 0° C to +50° C
• Operating Humidity: 5%-95%, Non-condensing
• Exposure Control: Automatic and manual control
• White Balance: Automatic and manual control
• Gain: 1.0 to 15x
• Interface Connector: USB 2.0 high-speed interface
• Dimensions: 3.85 x 2.25 x 2.75 inches
• Lens Mount: Adjustable C-Mount standard

Included in the Box:

• INFINITY1-1M — 1.3 MP CMOS Monochrome USB 2.0 Camera
• 2 m USB 2.0 cable
• LuINFSW-DVD — DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
