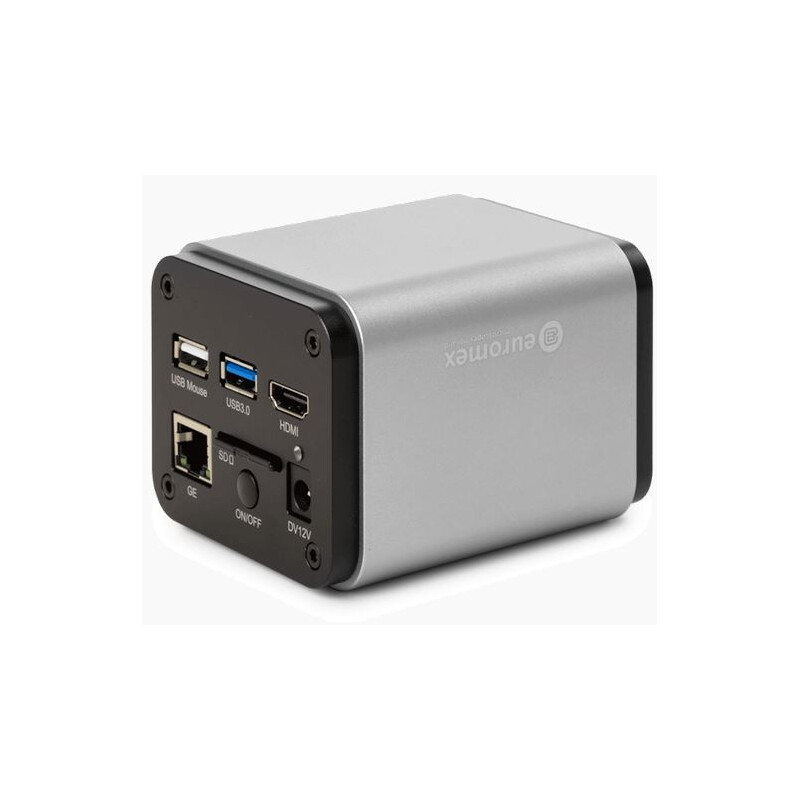

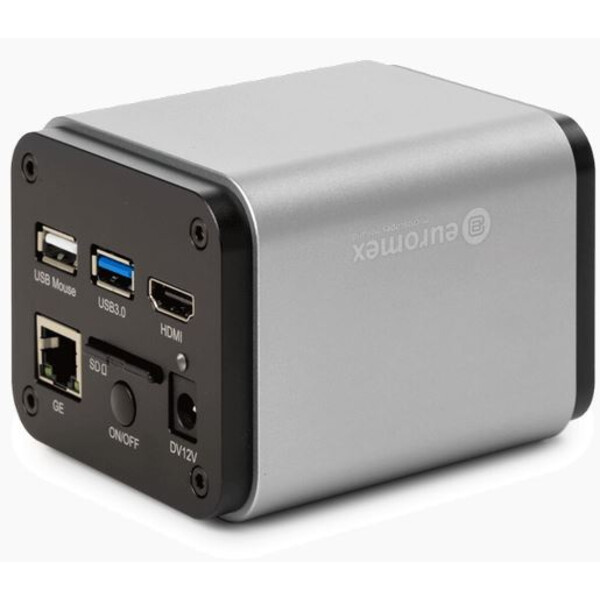

UHD-4K Camera VC.3040/VC.3040
High definition 4K UHD 2160p CMOS color camera, with HDMI and USB-3 interface. The Euromex 4K Sony Ultra HD camera offers - with the latest horizontal display resolution of 3,840 pixels (2,160p) and new 4K screens - a new solution to modern microscopy for industry and laboratories where more spatial detail and contrast are needed. These 4K UHD image quality camera can be used for biological, metallurgical or stereo microscopes. The real time images generated with this standalone camera provide excellent color rendering at high frame rates, up to 60 frames per second. The 4K UHD ultra high definition camera can be used in two modes, in a stand-alone with its embedded mouse-driven software or in a computer controlled mode
Highlights
- Ultra HD 2160p, 8 MP, 1/8 inch color 4K Sony sensor
- 3840 x 2160 pixels, 60 fps, H264 codec
- ADC 16 bits, color depth 36 bits
- Real time images directly on TV, monitor or beamer
- Stand alone or used via PC
- Built-in mouse-driven software
- C-mount interface
- 4K HDMI 2.0 standard
- 2061p/1080p automatic switching
- Gigabit ethernet, USB-3, Wifi LAN
- SD memory card
- Equipped with ImageFocus Alpha software
TECHNICAL SPECIFICATIONS
Sensor: 4K Sony
Format: 1/1.8”, HDTV 2160p
Pixels: 3840 x 2160 (capture mode)
HDMI 60 fps, USB 30 fps
Pixel size: 2.0 x 2.0 μm
Video: 2160 pixels video recording mode
Scan mode: Progressive scan, rolling shutter
Noise: Standard noise reduction
Senitivity: 505 mV
Exposure: Automatic/ manual
White balance: Automatic/ manual/ ROI
S/N Max: 44
Interfaces: Digital HDMI, USB-3, GbE ethernet, WiFi
Storage: High speed 16GB SD Memory card (larger capacity SD cards are optional, max 32 GB)
Camera buttons: On/ Off
Mounting: C-mount interface
Power supply: 100-240 Vac to 12Vdc/1A
Humidity: 10~60 %
Operation temperature: -10~ 50 ° Celsius
Storage temperature: -20~ 60° Celsius
Measurement: Supported
Supplied with: 0.5x objective with C-mount, 30 mm and 30.5 mm adapters for stereo microscopes, 12 V/1 A power adapter, 16 GB SD card, Micro USB Synchronous cable 1.5 M, HDMI cable, USB mouse, 76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus Alpha software, carton box
PC software: Supplied with ImageFocus Alpha imaging and measuring software for Windows 7/ 8/ 10 (32 and 64 bit configurations). A Mac OS version is also supplied (with a few differences in features)
PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2 GB, USB-3 (also compatible with USB-2)
Product number: VC.3040 / VC.3040-HDS
