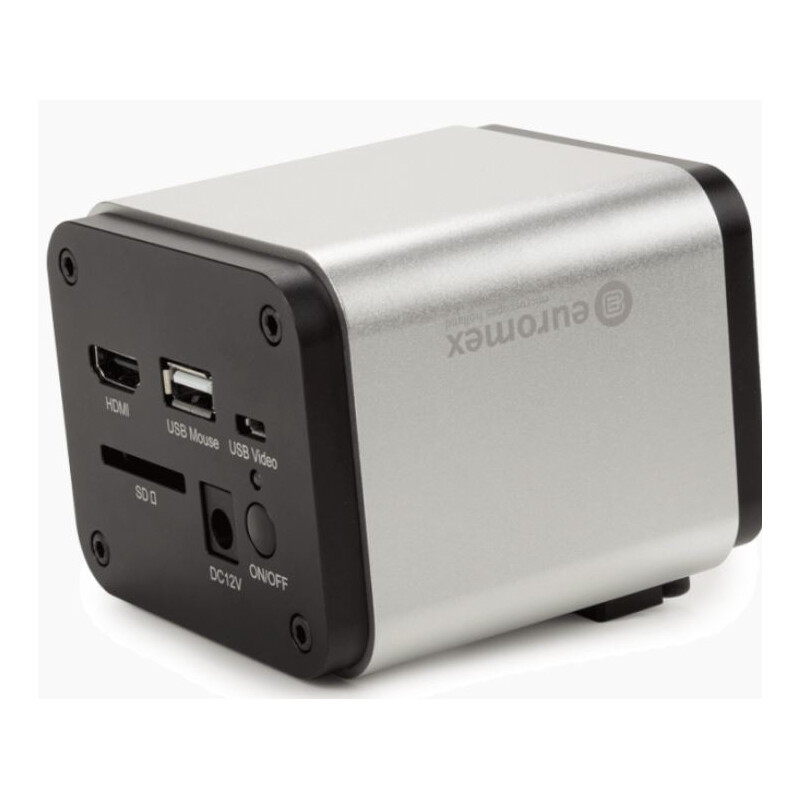

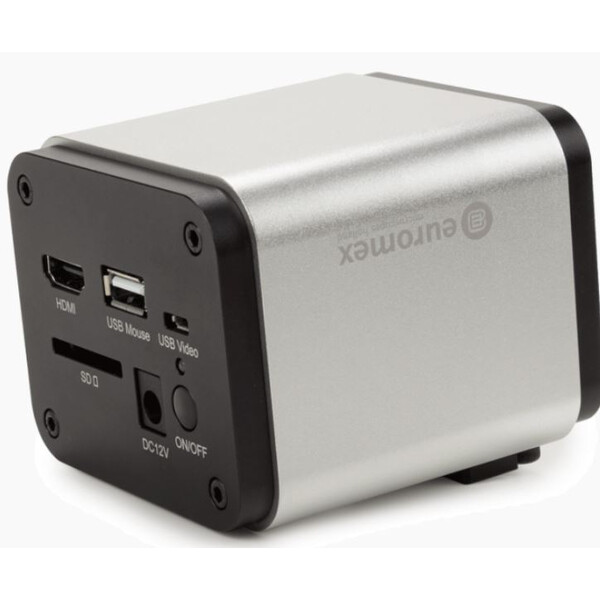

HD-Pro HDMI camera VC.3038/VC.3038-HDS
The real time images generated with this camera provide excellent color rendering at high frame rates, up to 60 frames per second on any direct connected HDMI screen or monitor. The HD-Pro high definition camera can be used in three modes: in a stand-alone with its embedded mouse-driven software, in a computer controlled mode or a combination of both. Connect the HD-Pro directly to a large TV or monitor, perform calibrated measurements, save images and videos all without need of a computer. The menu and controls are displayed on the TV and are controlled by a mouse, connected directly to the camera. More advanced analyses can be done by connecting the HD-Pro to a computer, where ImageFocus Alpha software allows for annotations, measurements, stacking, stitching and many more functions
Highlights
- HD 1080p high definition video camera
- Real time images directly on screen
- Stand alone or used via PC or simultaneous use
- Built-in mouse-driven software
- C-mount interface
- HDMI, USB-2 and SD memory card
- Compatible with ImageFocus Alpha software
- HDMI 2.0 MP CMOS high sensitive sensor
TECHNICAL SPECIFICATIONS
Sensor: SONY IMX290 CMOS
Format : 1/2.8”, HDTV 1080p (50/60Hz)
Pixels : 1920 x 1080 pixels (capture mode), 1920 x 1080 pixels (live view), HDMI 60 fps, USB 26 fps
Pixel size: 2.9 x 2.9 µm
Video: 1080p pixels video recording mode
Video Output: Digital HDMI, USB-2
Scan mode: Progressive scan, rolling shutter
Exposure : Automatic/manual
White balance: Automatic/manual/ ROI
Sensitivity: 1300mV with 1/30s
Noise : Standard noise reduction
Color rendering: 24
Signal/Noise (db): 38
Dynamic (db): 66
Interfaces: Digital HDMI, USB-2
Storage: High speed 16 GB SD card included (32GB max)
Camera buttons: On/ Off
Mounting: C-mount interface
Power supply: DC 12V/1A Adapter
Operation: -10~ 50 C, 30~80% relative humidity
Storage temperature: -20~ 60 C, 10~60% relative humidity
Software: Supplied with ImageFocus Alpha imaging and measuring software for Windows 7/ 8/ 10 (32 and 64 bit configurations)
PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2 GB, USB-2
EMBEDDED SOFTWARE: (displayed on TV, no need for computer)
• Capture images and videos to SD
• Playback images and videos from SD
• Measurements (like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles, Polygon, Curve, etc)
• Compare images
• Grids
• Digital zoom in/out
• Flip
• Pause
• Camera settings (white balance, color control etc.)

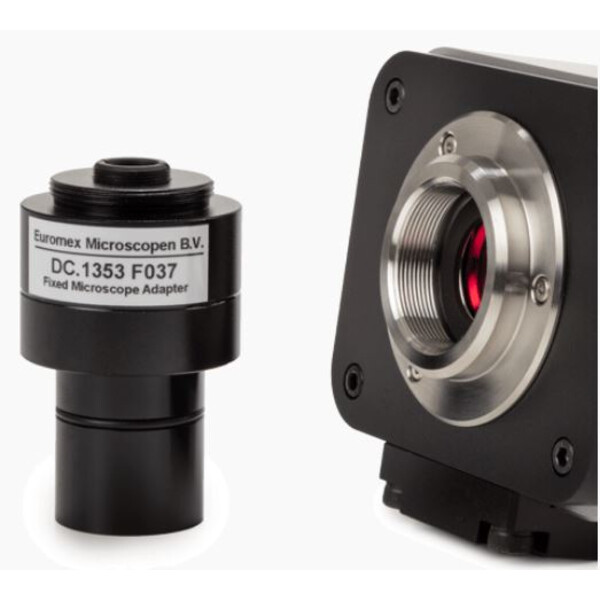

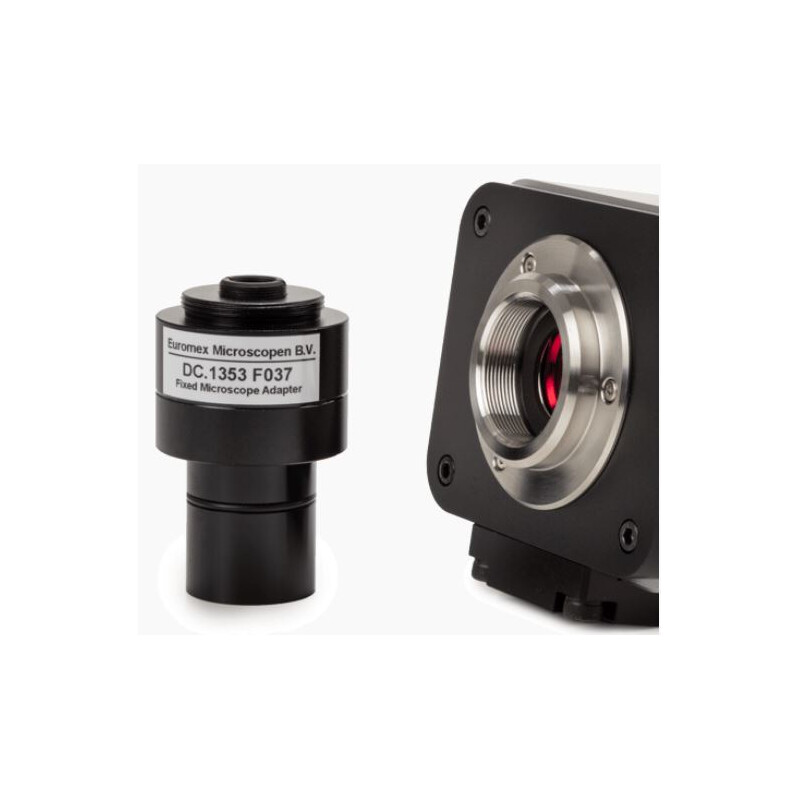

Supplied with : 0.37x objective with C-mount, 30 mm and 30.5 mm adapters for stereo microscopes, 12 V/1 A power adapter, a 16 GB SD card, Micro USB Synchronous cable 1.5 M, HDMI cable, USB mouse, 76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus Alpha software, carton box
Model: VC.3038 / VC.3038-HDS
