Kamera MikroCamII Full HD HSP Highspeed, 2MP, USB3, 120fps

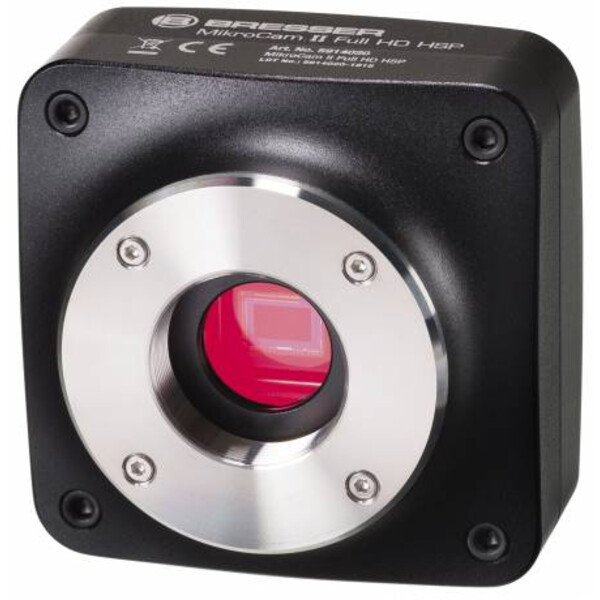

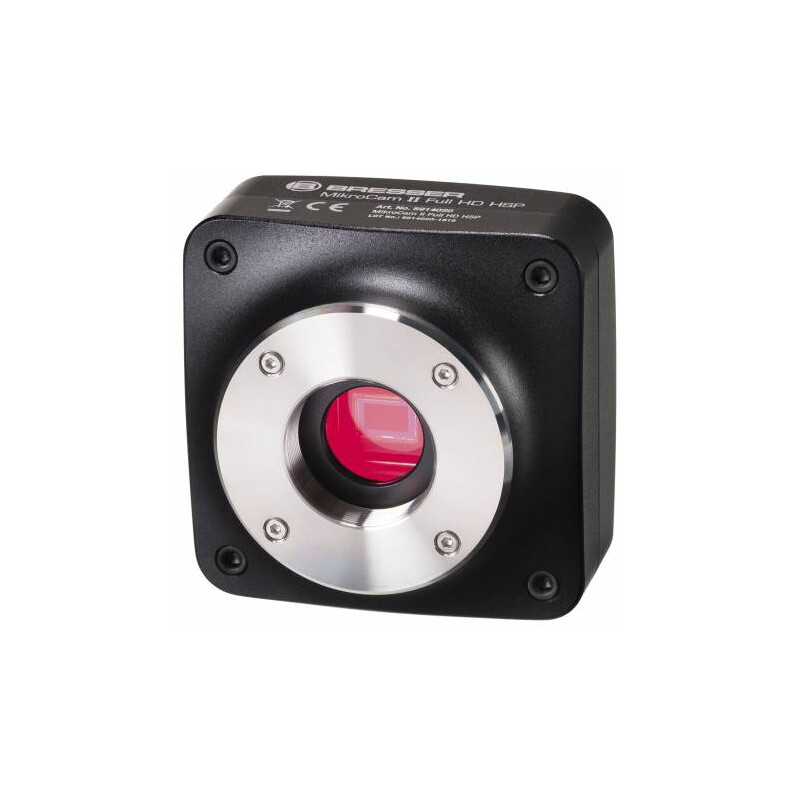

BRESSER MikroCamII Full HD HSP Microscope camera

The BRESSER MikroCamII FULL HD HSP Microscope camera is the perfect tool for demanding microscopy applications where high sensitivity and short exposure times are crucial. The camera will enhance results from demanding contrast techniques like darkfield and phase contrast. The camera is able to "freeze" even the fastest motions from live biology samples or in machine vision applications. The camera is able to capture video with framerates up to 120 images per second. Record fast motions from live samples without blur with ultrashort exposure times as low as 1/30.000 second.

The MikroCamII Full HD HSP is the perfect camera for a wide range of applications:?documentation

• analysis
• presentation, lectures
• quality control
• automation
• machine vision

The MikroCamII Full HD HSP is fully suitable as an industry camera with an attractive price level.

FEATURES

• High quality machined metal housing with c-mount connector
• professional software suite included with functions like measurements, automatic image analysis, focus stacking, live mosaic
• capture images, video and time-lapse
• compatible with almost all microscopes
• Highspeed USB 3.0 connection
• ultra sensitive Sony® IMX385 CMOS Sensor
• 1/4'' connection for tripods etc.
• can be used with c-mount lenses

SCOPE OF DELIVERY

• Camera housing
• USB 3.0 cable
• adapters with 23.2 mm; 30.0 mm und 30.5 mm
• Software package for Windows

Specification

• Capture video with up to 120fps
• Ultrashort exposures: 1/30.000 sec
• Ultra sensitive Sony® IMX385 CMOS Sensor
• Full HD resolution (1920 x 1080 Pixel)
• c-mount thread for easy adaptation
• suitable for c-mount lenses

ELECTRONICS, HARDWARE & SOFTWARE

Data transmission via USB cable

Resolution 1920 x 1080

Sensor type CMOS Color

Operating system Microsoft Windows 7, Microsoft Windows 8, Microsoft Windows 10

GENERAL TECHNICAL DATA

Colour black

Body material Aluminium

DIMENSIONS & WEIGHTS

Total length 68 mm

Total width 68 mm

Total height 46 mm

Net weight (without access.) 300 g
