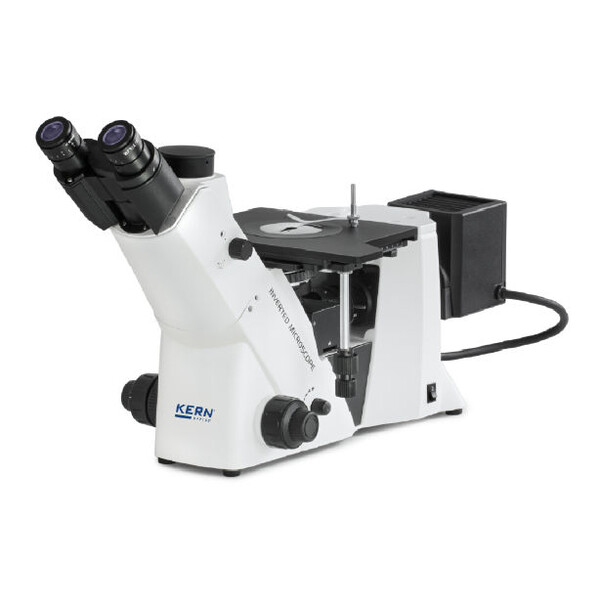

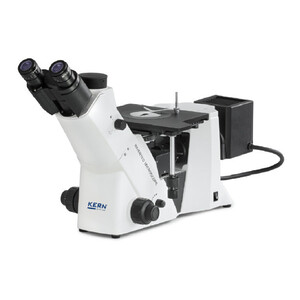

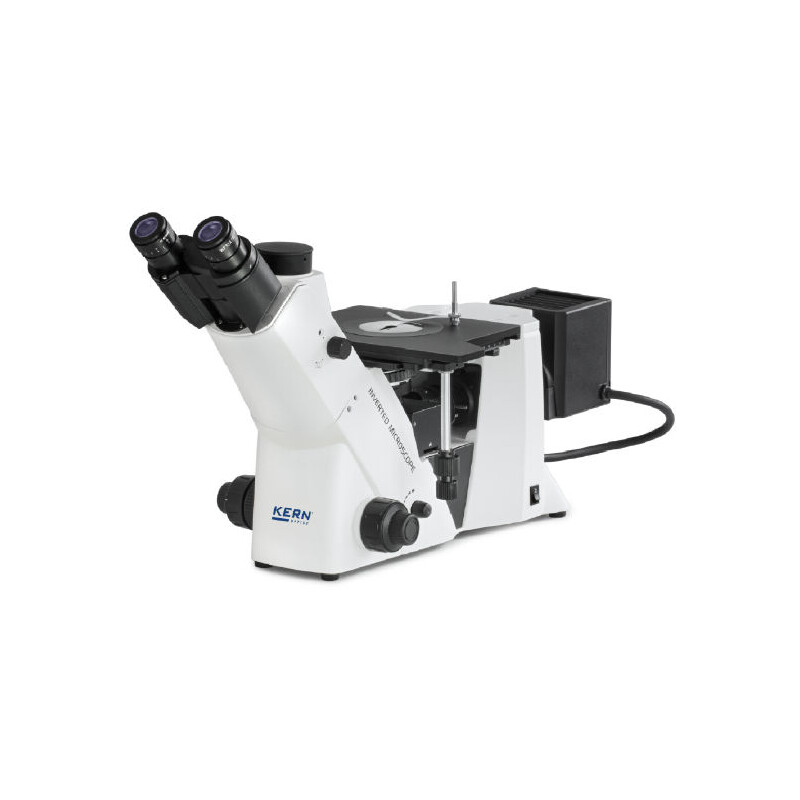

Invert mikroskop OLM 171, invers, MET, POL, trino, Inf planchrom, 50x-500x, Direktljus, HAL, 50W

• The KERN OLM-1 range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry
• Strong and infinitely adjustable 50 W halogen illumination unit ensures the optimum illumination of the materials to be tested
• As standard, the OLM-1 range is fitted with a trinocular eyepiece tube
• A simple polarising unit (analyser and polariser) is included with delivery
• A large mechanical stage is included with delivery as standard.
• The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing[/]
• Further options such as, for example, a large selection of objectives can be integrated as accessories
• A dust cover as well as user instructions are included with the delivery

Scope of application

• Metallurgy, material testing, quality assurance

Applications/Samples

• Opaque and thick samples, workpieces (surfaces, fold lines, coatings)

Technical data

• Infinity optical system
• 5-fold lens revolving unit
• Siedentopf 30° inclined
• dioptre compensation both sides
• Overall dimensions W×D×H 747×271×379 mm
• Net weight approx. 12,968 kg
