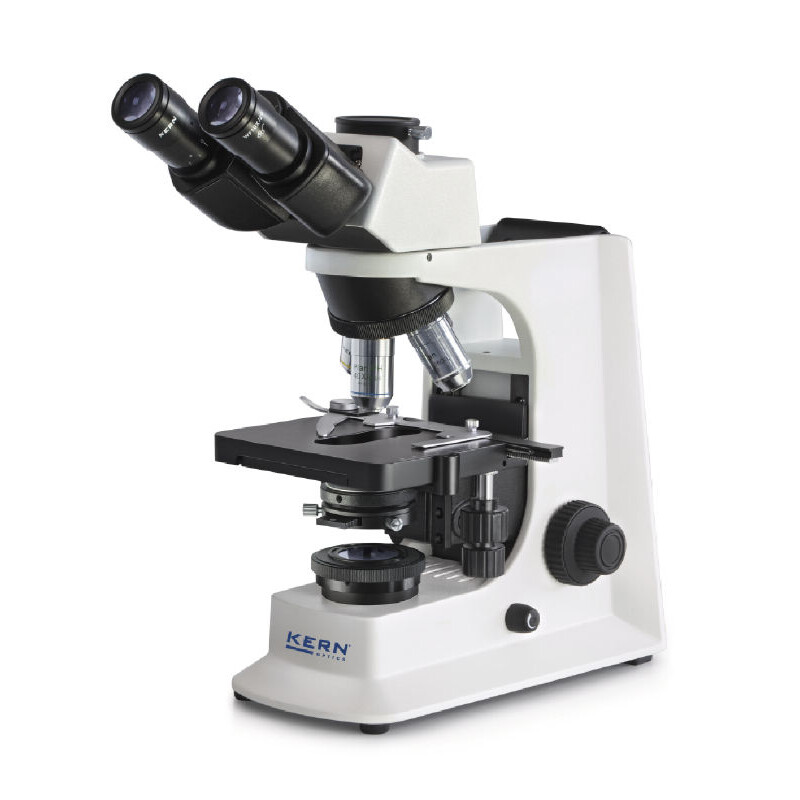

- We have developed this series specially for general applications with phase contrast method. In addition, the stable, modular construction system of the OBL series offers many more options
- A strong and continously adjustable 20W halogen illumination unit (Philips) ensures the optimum lighting conditions

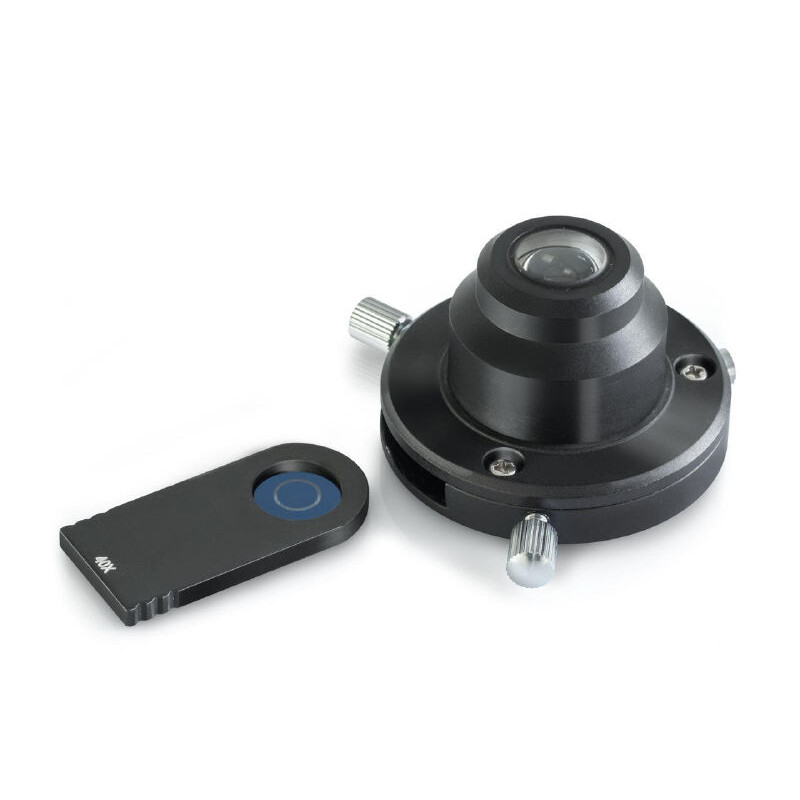

- A special fixed, pre-centred phase contrast condenser with aperture diaphragm as well as field diaphragm which can be focused to a height give you a simplified Köhler illumination and thereby a powerful phase-contrast display of your sample
- The large mechanical stage table and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
- A large selection of eyepieces, objectives and colour filters, a simple polarising unit as well as further phase contrast units are available to you as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
- A C-mount adapter is required to connect a camera to the trinocular version
Scope of application
Haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, vets, sewage treatment plants, water analysis, breweries
Applications/Samples
specially for extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast

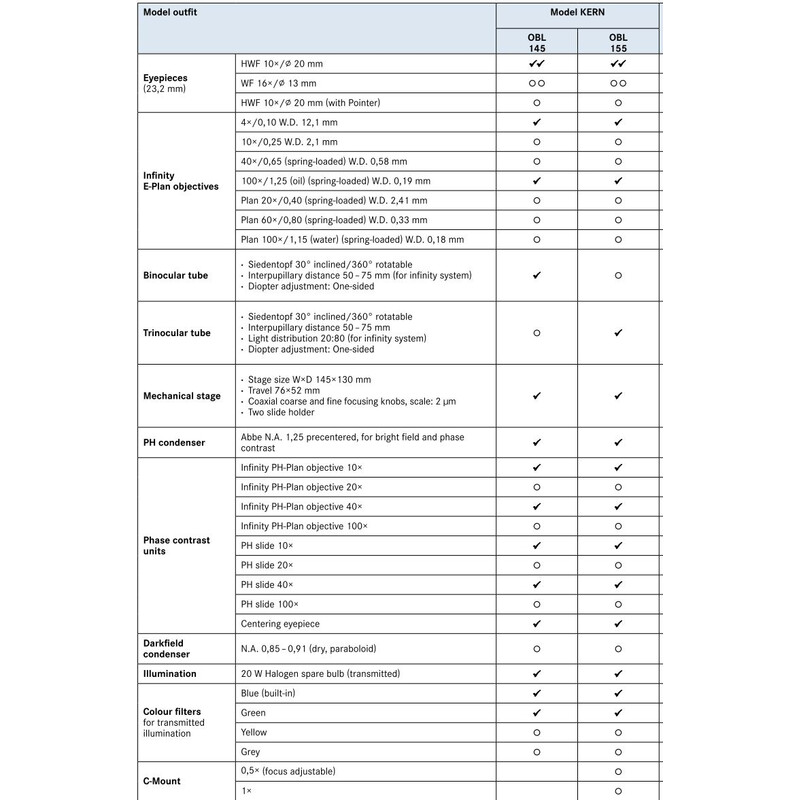

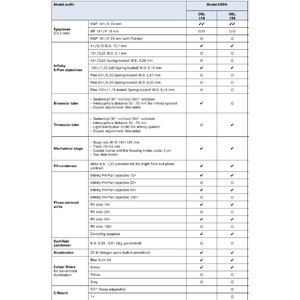

Technical data
- Infinity optical system
- 4-fold lens revolving unit
- Siedentopf 30° inclined, 360° rotatable
- Dioptre compensation one-sided
- Overall dimensions W×D×H 395×200×380 mm
