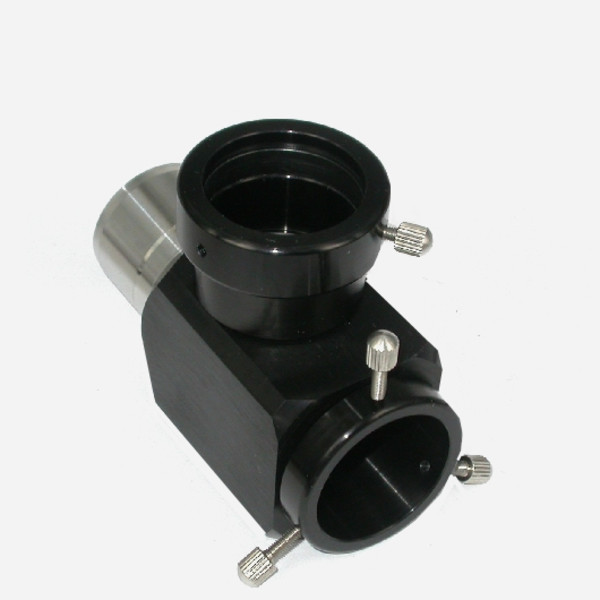

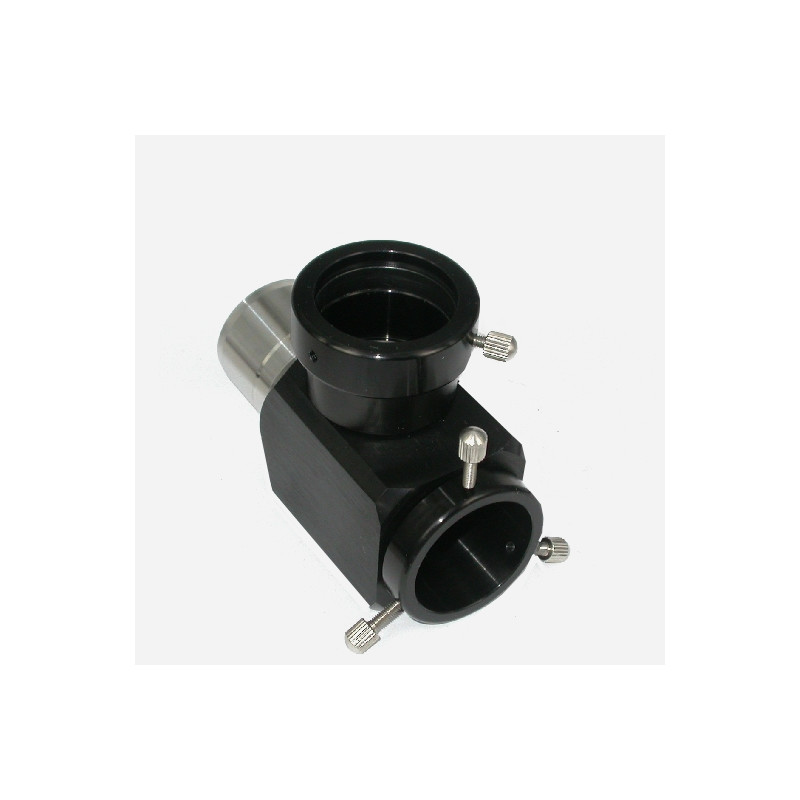

Diagonal with two output 1,25" (31,8mm) beamsplitter

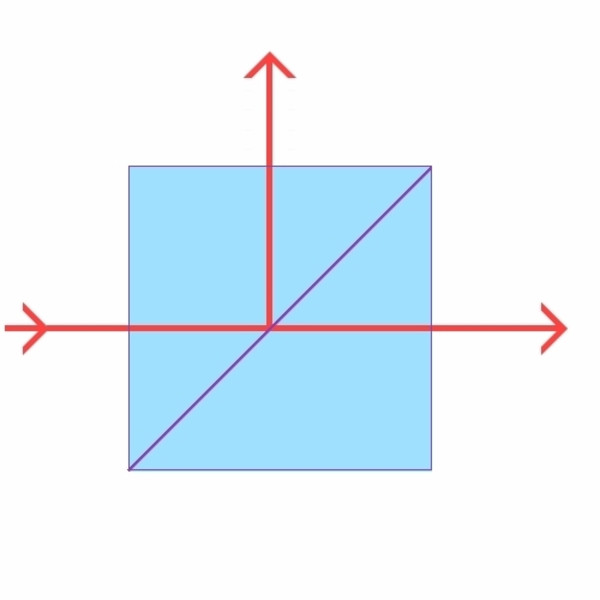

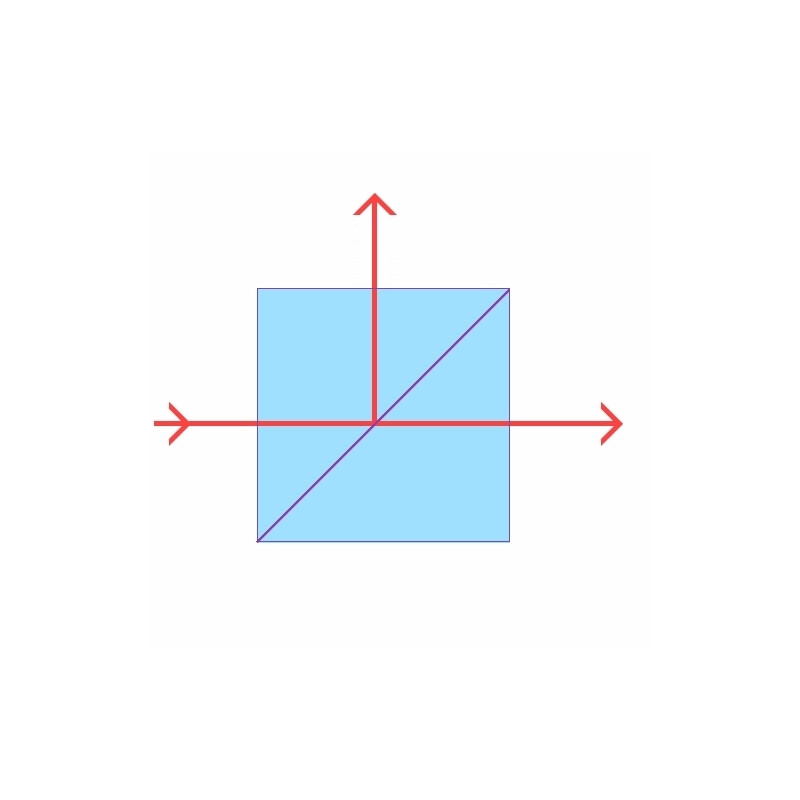

- Beamsplitter cube dimensions: 20x20x20mm resolution 50% / 50%
- Material: BK7 Grade A optical glass
- Dimension: 20 mm x 20 mm
- worked surfaces optically: S1,S2,S3,S4,S5 Tolerance: ±0.2mm
- Beam Processing: ?/[email protected]
- Quality surface: 60-40 scratch and dig
- Processing S1,S2,S3,S4 AR@450/650nm,Ravg<0.5%,AOI=0°
- S5: T/R= 50% 50% ± 5%, daylight T=(Ts+Tp)/2, R=(Rs+Rp)/2,AOI=45°
- Wavelength work: 450-650nm, 650-900nm, 900-1200nm
Please note - Flip-mirrors are not suitable for use with Newtonian telescopes, as the focal point can no longer be reached. Their use on refractors or catadioptric systems - SCs, ACFs, Maksutovs - is no problem however.
