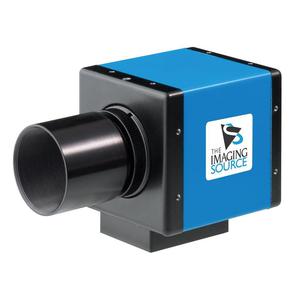

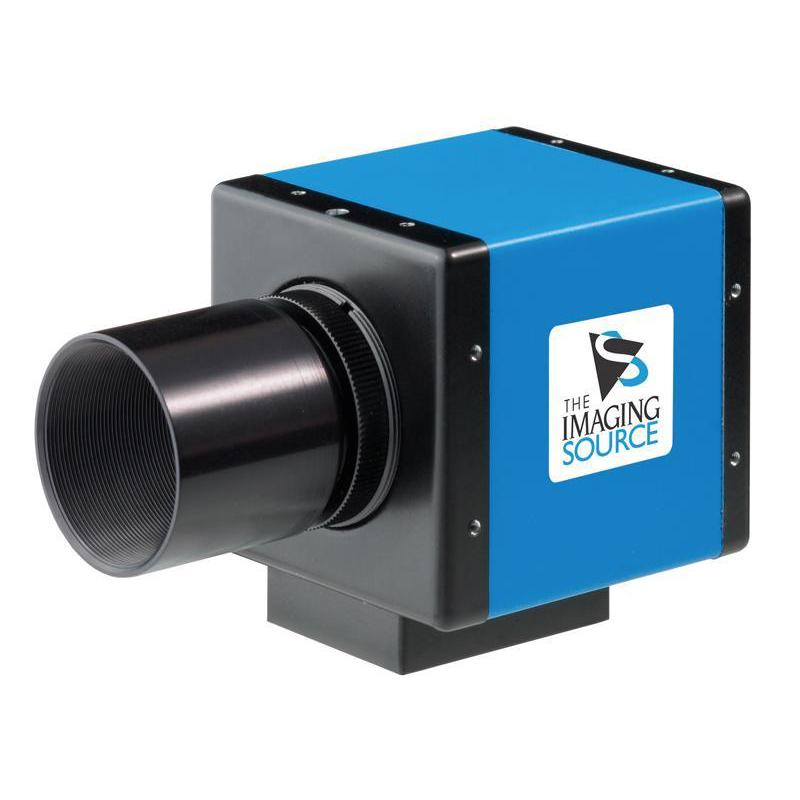

Low Cost Monochrome GigE Astro CCD Camera with High Resolution
High resolution, fast refresh rate
The astro CCD cameras DMK 31AG03 unifies three important characteristics for astrophotography: high resolution, fast refresh rate and a low price. Using the shipped software - IC Capture - you can save the captured images to lossless and uncompressed AVI files.
Monochrome Sony CCD
The astro CCD cameras DMK 31AG03.AS is based on the CCD chip ICX204AL, manufactured by Sony. This monochrome CCD has a resolution of 1024 x 768 pixels at 1/3" format. Even at long exposure times, its noise is minimal. Due to the high quality of the ICX204AL, the CCD chip is often used in industrial image processing applications.
No compression, no filter
The image data produced by the CCD camera DMK 31AG03.AS is not compressed. Furthermore, the camera does not have any optical, nor electronic filters. Thus, the camera produces very true-to-life captures of the night sky.
Fast data transfer via GigE
The astro CCD camera DMK 31AG03.AS outputs a fast stream of uncompressed monochrome images. In order to transfer these to the host PC, a very fast bus is required. Hence, the camera is fitted with a GigE connector.
Shipped software for Windows
This camera ships with the camera driver and the control software IC Capture.AS.
- Monochrome USB camera without IR cut filter
- 1/3" CCD, progressive scan
- Resolution 1024 x 768
- Max. 30 fps
- Max exposure time 60 min
- C/CS Mount
- Software included
Vår expertkommentar:
Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.
A device driver for The Imaging Source cameras (also compatible with Windows 7) can be found here: device driver for The Imaging Source cameras
(Bernd Gährken)
