Naturobservation > Mörkersikten och värmekameror > Enheter > Värmekameror > Armasight > Command > Armasight Värmekamera Command 336, 3-12x50 (60 Hz)
Artikelnr: 54556

Värmekamera Command 336, 3-12x50 (60 Hz)

på lång sikt
Artikeln är inte tillgänglig längre + Frakttid

Beskrivning av artikel

Note: The authorized export countries for this product are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

Armasight Command
The Command is the most technologically-advanced Thermal Imaging bi-ocular for the sporting, law enforcement, and military markets. The Command is based on the advanced FLIR VOx microbolometer core that is suitable for a variety of uses and missions.

The Command is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions. The 24/7 mission capability is only one of the strengths of the Command bi-ocular. The thermal imaging technology also allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or near-infrared illumination to augment night vision equipment, the Command thermal imager is extremely difficult to detect with other devices, as it emits no visible light or RF energy.

Special User-Adjustable Imaging Tools

  • Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
  • Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
  • Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
  • Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
  • User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Command models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
  • Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Command models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.

FEATURES

  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Special user-adjustable imaging tools
  • Current operational state information display
  • Wireless remote control
  • Analog video input and output
  • Powered by two standard CR123A batteries
  • Power input capability
  • Digital video recorder (optional)
  • Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging

Specification Command 336 3-12x50 (60 Hz)

  • Magnification 2,8 (NTSC) / 3,4 (PAL)
  • Objective Lens Type Germanium
  • Objective Focal Length 50mm
  • Objective F-number 1:1
  • Type of Focal Plane Array FLIR Tau 2
  • Pixel Array Format 336×256
  • Pixel Size 17 µm
  • Display Type AMOLED SVGA 060 800x600
  • Video Recording Optional Digital Video Recorder with SD card slot
  • Operating Temperature -40°C to +50°C (-40°F to +122°F)

Tekniska data

Prestanda


Typ av byggnad
Binokular (ett objektiv)
Teknologi
Värmekamera
Förstoring
3 (+ 4x Digital Zoom)
Objektiv
50mm F:1
Upplösning sensor
336x256
Bildvisning
olika varianter
Bildväxlingshastighet (Hz)
60
Dioptrijustering (dpt)
+/- 5
Batterikapacitet (h)
4

Särskilda egenskaper


Infraröd lampa
-
Digital avbildning
ja
Video-utgång
ja
Optikhållare
-
Överexponeringsskydd
ja
Dag-natt-system
ja
Stänktålig
ja
Försättslinser finns
nej

Synfält


Verkligt synfält (°)
7,8
Synfält 100 m (m)
13,6
Närinställningsgräns (m)
5

Användningsområden


Objektskydd och observation
ja
Jakt och naturobservation
ja
Navigering och fiske
ja
Grottutforskning och camping
ja

Allmänt


Färg
svart
Längd (mm)
238
Bredd (mm)
100
Höjd (mm)
62
Vikt (g)
800
Serie
Command

Övrigt


Batterityp
CR123

Rekommenderade tillbehör

Vård och rengöring > Rengöringsmedel (3)

Omegon Rengöringssats för optik 7 i 1

$ 19,90*
Vård och rengöring > Övrigt (2)

Omegon rengöringsduk i mikrofiber 20 cm x 20 cm

$ 4,90*
Övrigt (1)

Varta CR123 Litiumbatteri

$ 8,90*

*Alla priser inkluderar moms, leveranskostnader tillkommer.

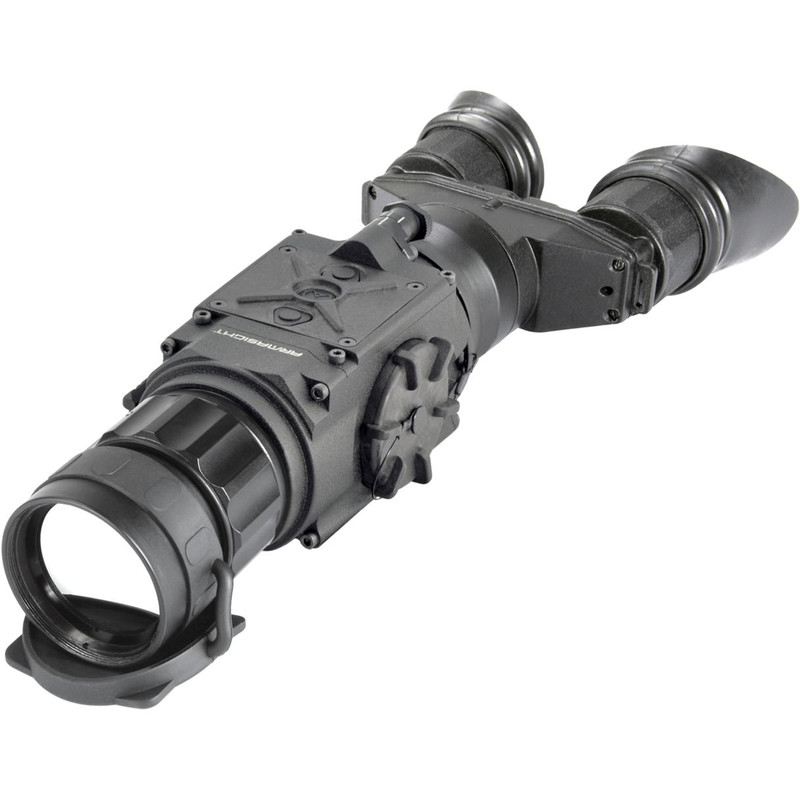

Armasight Värmekamera Command 336, 3-12x50 (60 Hz)

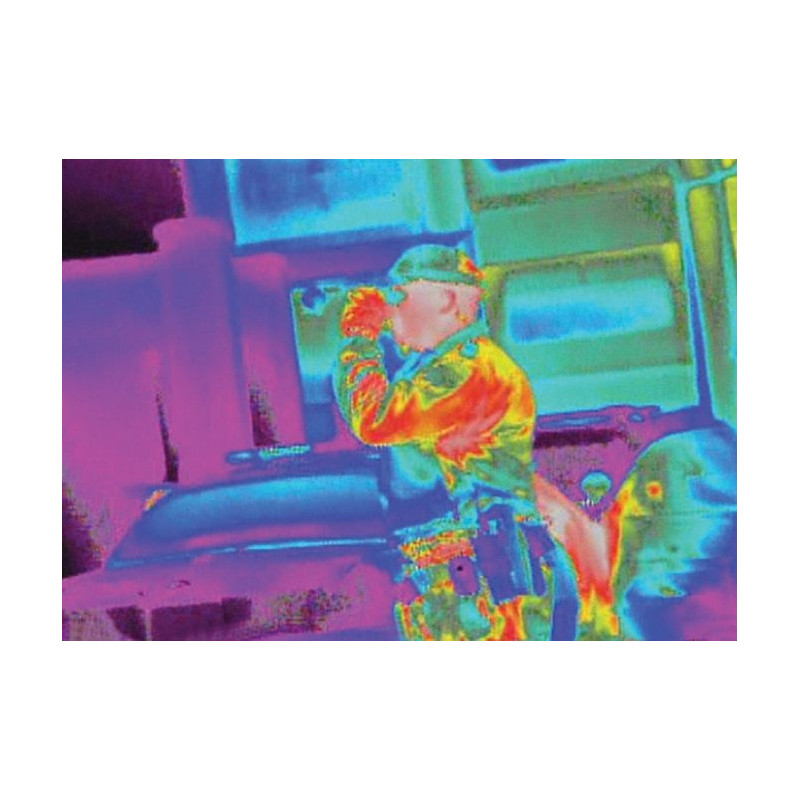

Användningsexempel 1
Armasight Värmekamera Command 336, 3-12x50 (60 Hz)

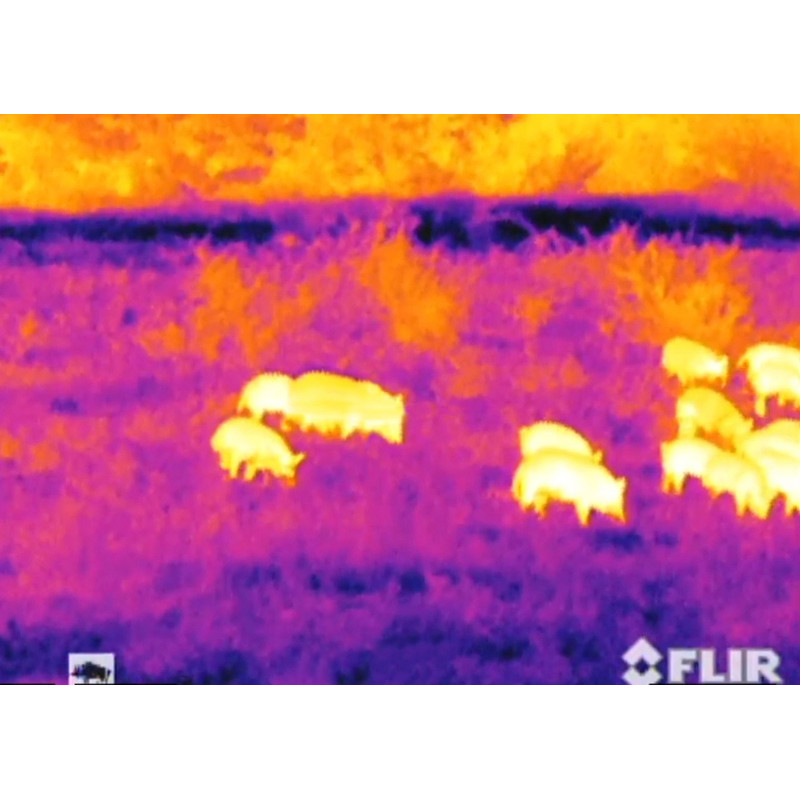

Användningsexempel 2
