Important:
please note that there is NO blocking filter with this telescope. To ensure a completely safe use of that telescope, you need to add an optional filter. You may either choose an upright filter for astrophotography (like model 15928.) Or a visual filter in a diagonal such as 15936 for example. Please note that the filter has to be chosen in accordance to the telescope you have! You have to choose it according to the focal length of the telescope.
Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

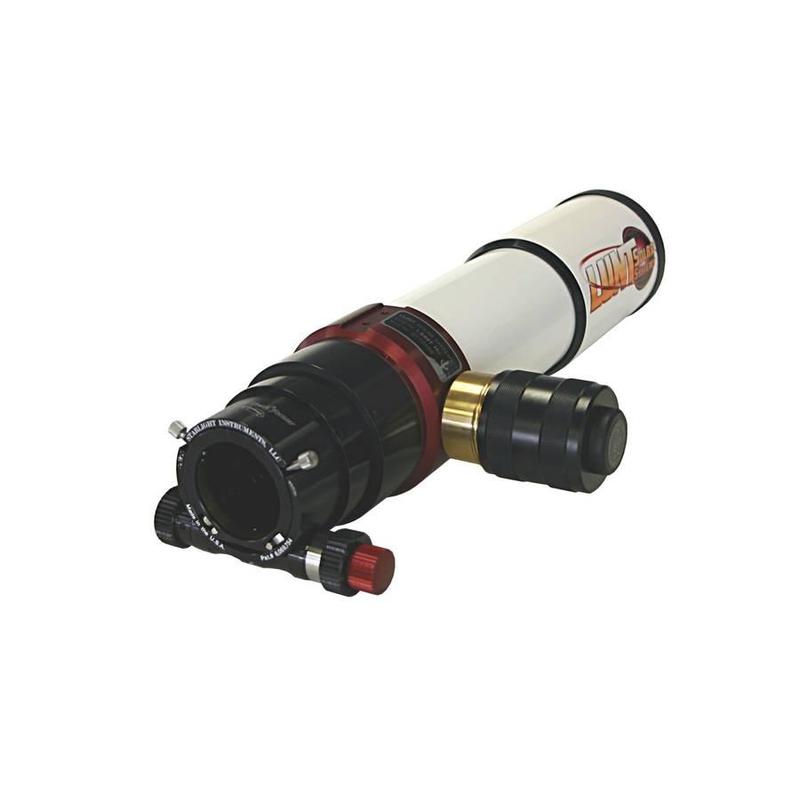

Lunt Solar System H-alpha telescope:
This complete solar telescope is a high-quality achromat, with the front lens reducing stray light to half that of a standard achromatic objective. This eliminates possible coma, astigmatism, centering deviations and, together with the appropriate collimation lenses, makes a spherically-corrected flat-field solar telescope. The image is optimized for maximum sharpness in the red part of the spectrum. The optical system is shadow-free (no central obstruction) and is suitable for observing the Sun's surface, as well as for prominences. The tube is made of metal and has been painted white.
Filtering is via an Etalon system: 2 parallel plates made of transparent material, e.g. silica glass with a mirrored surface. Such a system has frequency-dependent, periodic transmission maxima and loss minima. The Etalon filter used by the Lunt Solar System telescope isolates a specific wavelength of the solar spectrum: the H-alpha line. The internal Etalon system with fine tuning allows observing over a better than 0.7 Angstrom bandwidth. With an additional double-stack Etalon filter, which can be mounted in front of the front lens of the telescope, a bandwith of less than 0.5 angstrom is achieved.
PT pressure tuner: Fine-tuning on the Etalon filter is provided via an air pressure system. A small change to air pressure within a pressure chamber inside the telescope changes the refractive index of the air, resulting in precise yet effortless adjustment to the H-alpha spectral line. The pressure tuner guarantees a uniform image with no central obstructions and a long-lasting wear-resistant etalon.
Fine adjustment is achieved with a Crayford style focuser or feather touch focuser with 10:1 reduction standard. An internal etalon with tune adjustment allows for a <0.8 Angstrom bandpass.
It not only matters which telescope you buy but also where you buy it. Our additional services:
- We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
- We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
- We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.
Vår expertkommentar:
Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.
At Lunt telescopes, there are a number of variants with different options. It is possible to find out which model is being offered by looking at the designation.
An important criterion, also reflected in the price, is the size of the blocking filter. There are 3 different blocking filter sizes: 6mm, 12mm and 18mm in diameter. The designations for these are B600, B1200 and B1800 respectively. If there is nothing in the title, then it is an OTA without a blocking filter!
CaK or Ha mean that the instrument has been optimized for the blue calcium line or the red H-alpha line. Over 90% of instruments sold are H-alpha instruments, with the designation Ha.
C or FT refer to the two different focuser versions. C means the standard focuser and FT means an improved model from FeatherTouch.
PT is the designation for instruments with fine tuning that uses air pressure. Non-PT filters have fine tuning that works by tilting. The air pressure version usually provides a somewhat more homogeneous field.
DS or DS50 is the term for a 'double stack'. These instruments have two Etalon filters. This achieves a tighter bandwidth and therefore better contrast.
In addition, you can find 2 numbers in the title separated by a slash. The first number indicates the diameter of the front lens. The second number is the focal length. So a 60/500 telescope would have a 60mm aperture and a focal length of 500mm. The lens diameter is usually also the diameter of the Etalon supplied.
