CMEX
The different USB-2 cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes
CMEX USB-2 camera with CMOS sensor
CMEX-f USB-2 cameras with fast CMOS sensor
The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bits grayscale conversion and a 24 bits color rendering. The CMEX-f cameras are equipped with USB-2 data interface and supplied with ImageFocus Plus software Besides capturing of images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images and more. Compatible with Windows 7 and higher both 32 and 64 bits configurations. A Mac version is available
CMEX-2f DC.2000f
TECHNICAL SPECIFICATIONS
Sensor CMOS 1/2.9 inch
Pixels 1920 x 1060 pixels, 2.0 Mpix
Scan mode Progressive, rolling shutter
Pixel size 2.8 µm x 2.8 µm
Filter RGB
Mount C-mount
Max fps Up to 30 frames per second (1920x 1080 pixels)
ADC 12 bits
Color depth 24 bits
Sensitivity 0.51 V/lux-sec @ 550 nm
Exposure Automatic or manual, from 1 ms to 2 s
White balance Automatic/manual
Dynamic range 72 db
Data interface USB 2.0 at 480 Mb/s
Operation 0 – 60° C, 10-85 % humidity

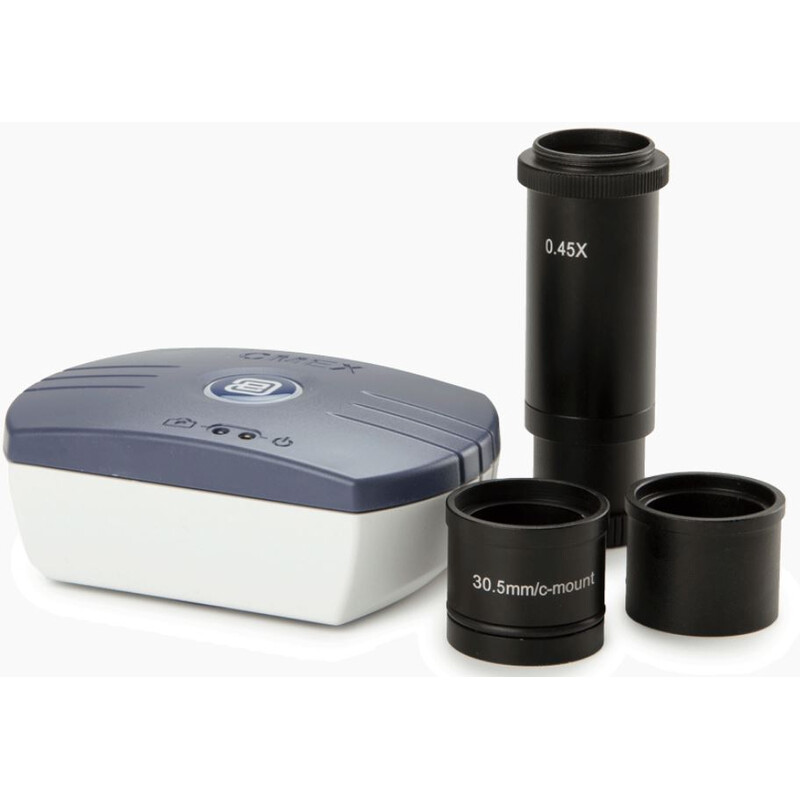

Supplied with 0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, CD ROM with ImageFocus Plus software, carton box
Software Windows 7 and higher (32 and 64 bit configurations) and Mac OS
Product number DC.2000f
